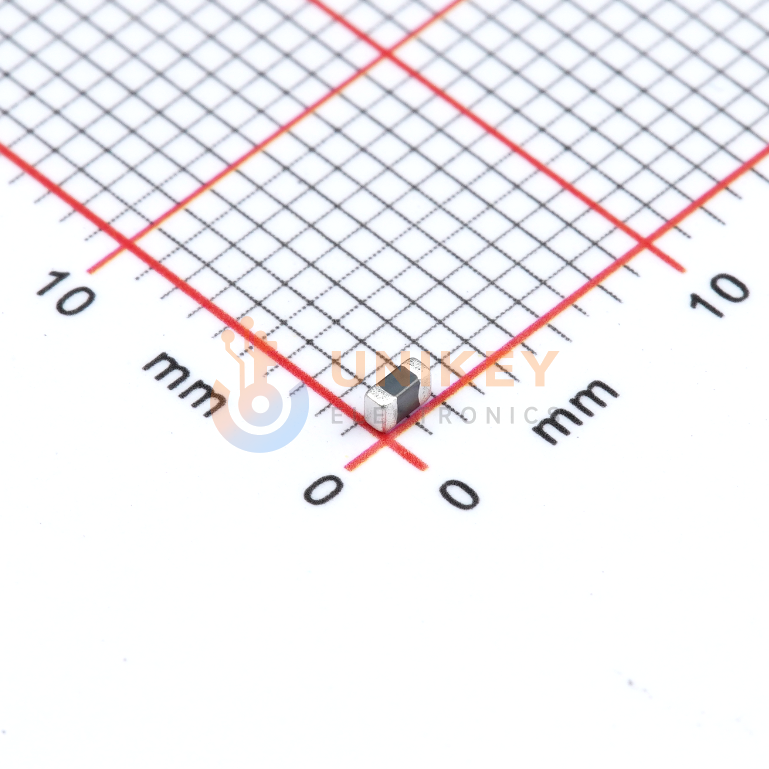

TDK MLZ2012N1R0LT000 image
Images are for reference only

MLZ2012N1R0LT000

2MHz 160MHz 220mA 1.15A 1μH 60mΩ ±20% 0805 SMD 2mm × 1.25mm × 1.05mm

Other Names:MLZ2012N1R0LT000

Manufacturer:TDK

Manufacturer Part:MLZ2012N1R0LT000

Email Document
ECAD Model:

In Stock

9,897 In stock, ready to ship

Quantity

10

Unit Price (USD)

$0.023

Ext. Price (USD)

$0.23

Total price$0.23
MOQ10Mult10SPQ4,000DC2428+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.023
$0.02
4,000
$0.0201
$80.40
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
160MHz
Inductance
1 µH
Inductance Frequency-Test
2 MHz
Q @ Freq
-
Current - Saturation (Isat)
220mA
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
1.15 A
DC Resistance (DCR)
60mOhm
Material - Core
Ferrite
Height-Seated (Max)
0.041" (1.05mm)
Package/Case
0805 (2012 Metric)
Size / Dimension
0.079" L x 0.049" W (2.00mm x 1.25mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Mounting Type
Surface Mount
Ratings
-
Rid
2523662
Series
MLZ
Supplier Device Package
0805 (2012 Metric)
Tolerance
±20%
