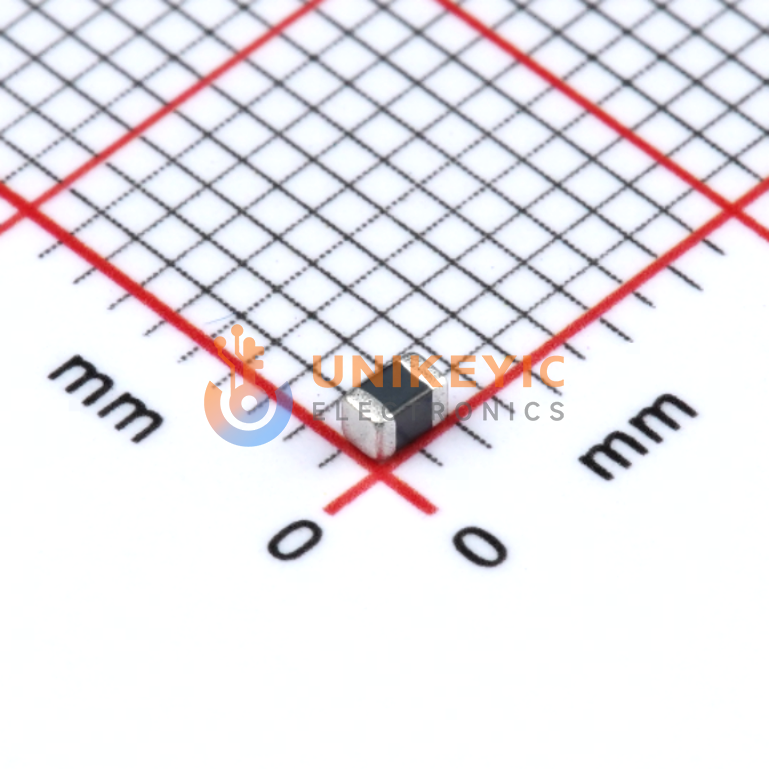

TDK MLZ2012N100LT000 image
Images are for reference only

MLZ2012N100LT000

2MHz 50MHz 110mA 500mA 8 10μH 300mΩ ±20% 0805 SMD mount 2mm*1.25mm*1.45mm

Other Names:MLZ2012N100LT000

more
MLZ2012N100LT00 0

Manufacturer:TDK

Manufacturer Part:MLZ2012N100LT000

Email Document
ECAD Model:

In Stock

144,690 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0603

Ext. Price (USD)

$0.30

Total price$0.30
MOQ5Mult5SPQ2,000DC2637+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.0603
$0.30
50
$0.0449
$2.24
150
$0.0351
$5.26
500
$0.0303
$15.15
2,000
$0.0275
$55.00
4,000
$0.0255
$102.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
50MHz
Inductance
10 µH
Inductance Frequency-Test
2 MHz
Q @ Freq
-
Current - Saturation (Isat)
110mA
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
500 mA
DC Resistance (DCR)
300mOhm
Material - Core
Ferrite
Height-Seated (Max)
0.057" (1.45mm)
Package/Case
0805 (2012 Metric)
Size / Dimension
0.079" L x 0.049" W (2.00mm x 1.25mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Mounting Type
Surface Mount
Ratings
-
Rid
2523583
Series
MLZ
Supplier Device Package
0805 (2012 Metric)
Tolerance
±20%
