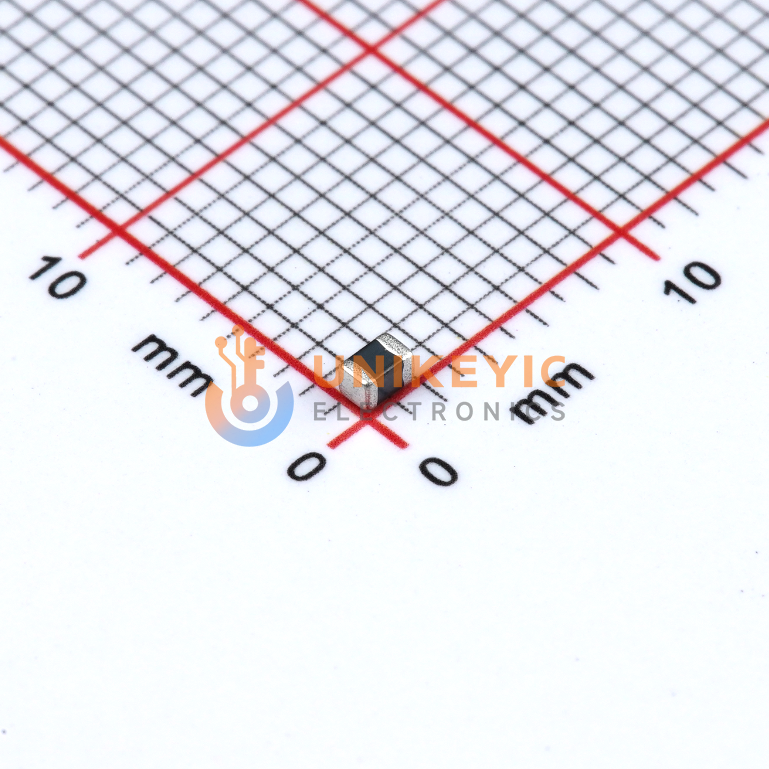

TDK MLZ2012M100HT000 image
Images are for reference only

MLZ2012M100HT000

Ferrite Bead, SMD 2MHz-40MHz 200mA 300mA 10μH 680mΩ ±20% 0805 2mm × 1.25mm × 1.45mm

Other Names:MLZ2012M100HT000

Manufacturer:TDK

Manufacturer Part:MLZ2012M100HT000

Email Document
ECAD Model:

In Stock

122,982 In stock, ready to ship

Quantity

10

Unit Price (USD)

$0.0265

Ext. Price (USD)

$0.26

Total price$0.26
MOQ10Mult10SPQ2,000DC2602+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0265
$0.02
2,000
$0.0238
$47.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
-
Inductance
10 µH
Inductance Frequency-Test
2 MHz
Q @ Freq
-
Current - Saturation (Isat)
200mA
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
300 mA
DC Resistance (DCR)
680mOhm
Material - Core
Ferrite
Height-Seated (Max)
0.057" (1.45mm)
Package/Case
0805 (2012 Metric)
Size / Dimension
0.079" L x 0.049" W (2.00mm x 1.25mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Mounting Type
Surface Mount
Ratings
-
Rid
3077886
Series
MLZ
Supplier Device Package
0805 (2012 Metric)
Tolerance
±20%
