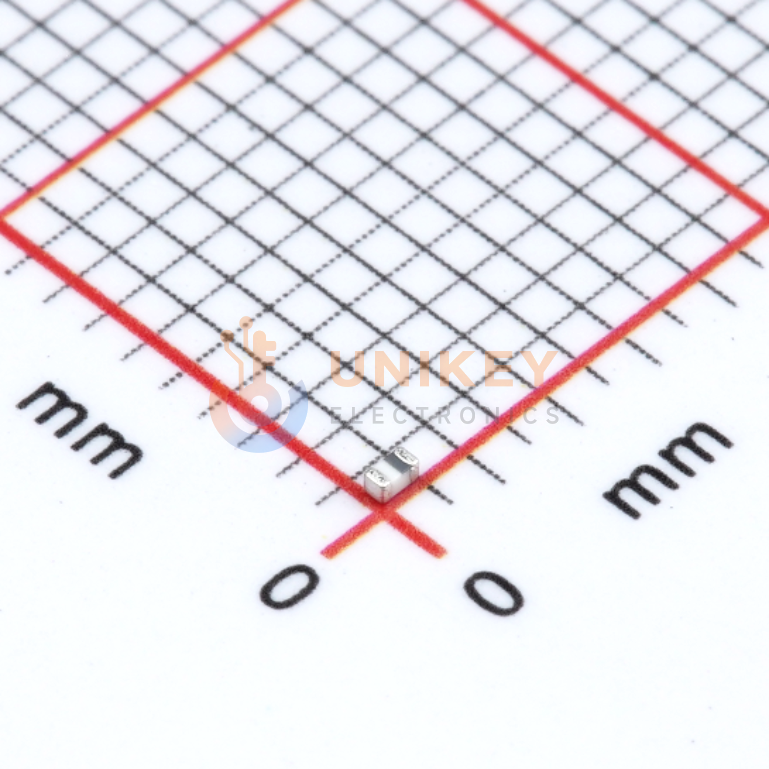

TDK MLG1005S1N2CT000 image
Images are for reference only

MLG1005S1N2CT000

Ferrite Bead 100MHz-10GHz 1A 7Ω@100MHz 1.2nH ±0.2nH 100mΩ 0402 SMD 1mm × 500μm × 550μm

Other Names:MLG1005S1N2CT000

Manufacturer:TDK

Manufacturer Part:MLG1005S1N2CT000

Email Document
ECAD Model:

In Stock

9,731 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0047

Ext. Price (USD)

$0.23

Total price$0.23
MOQ50Mult1SPQ10,000DC2104+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.0047
$0.23
500
$0.0041
$2.05
1,500
$0.0036
$5.40
5,000
$0.003
$15.00
25,000
$0.0029
$72.50
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
10GHz
Inductance
1.2 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
7 @ 100MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
1 A
DC Resistance (DCR)
100mOhm Max
Material - Core
Ceramic, Non-Magnetic
Height-Seated (Max)
0.022" (0.55mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Mounting Type
Surface Mount
Ratings
-
Rid
4969783
Series
MLG
Supplier Device Package
0402 (1005 Metric)
Tolerance
±0.2nH
