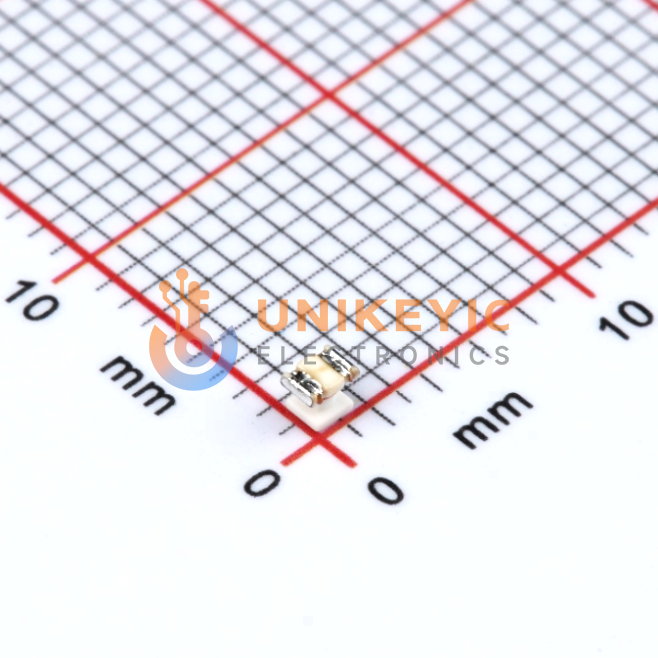

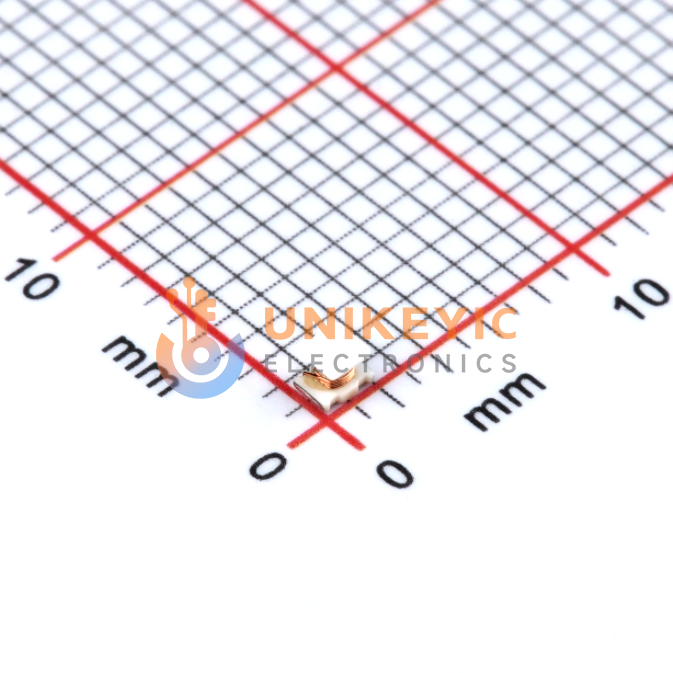

Murata LQW2BHN18NJ03L image
Images are for reference only

LQW2BHN18NJ03L

100MHz 2.6GHz 690mA 30@250MHz 18nH 100mΩ ±5% SMD SMD mount 2mm*1.5mm*1.78mm

Other Names:LQW2BHN18NJ03L

Manufacturer:Murata

Manufacturer Part:LQW2BHN18NJ03L

Email Document
ECAD Model:

In Stock

8 In stock, ready to ship

Quantity

8

Unit Price (USD)

$0.1659

Ext. Price (USD)

$1.32

Total price$1.32
MOQ8Mult1SPQ2,000DC2142+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
8
$0.1659
$1.32
100
$0.1422
$14.22
300
$0.1244
$37.32
1,000
$0.1048
$104.80
5,000
$0.0995
$497.50
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
2.6GHz
Inductance
18 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
30 @ 250MHz
Current - Saturation (Isat)
-
Operating Temperature
-40°C ~ 85°C
Current Rating (Amps)
690 mA
DC Resistance (DCR)
100mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.070" (1.78mm)
Package/Case
Nonstandard
Size / Dimension
0.079" L x 0.059" W (2.00mm x 1.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQW2BHN
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
4422253
Series
LQW2
Supplier Device Package
0805 (2012 Metric)
Tolerance
±5%
