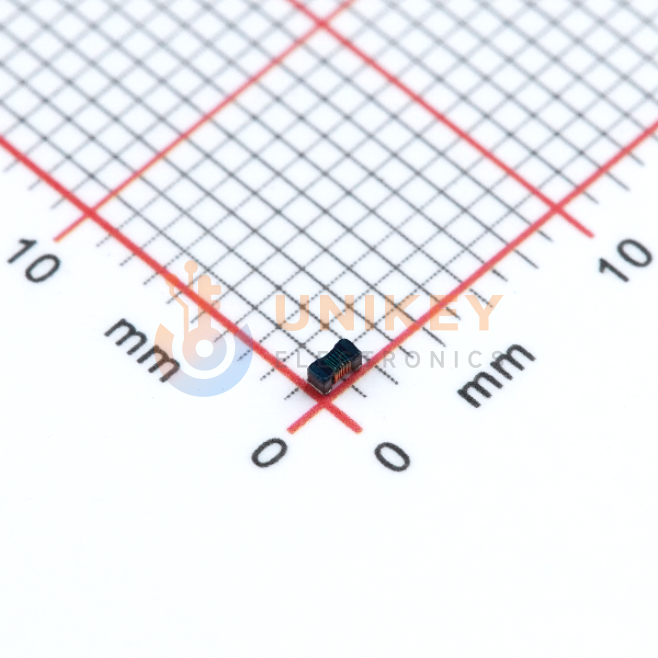

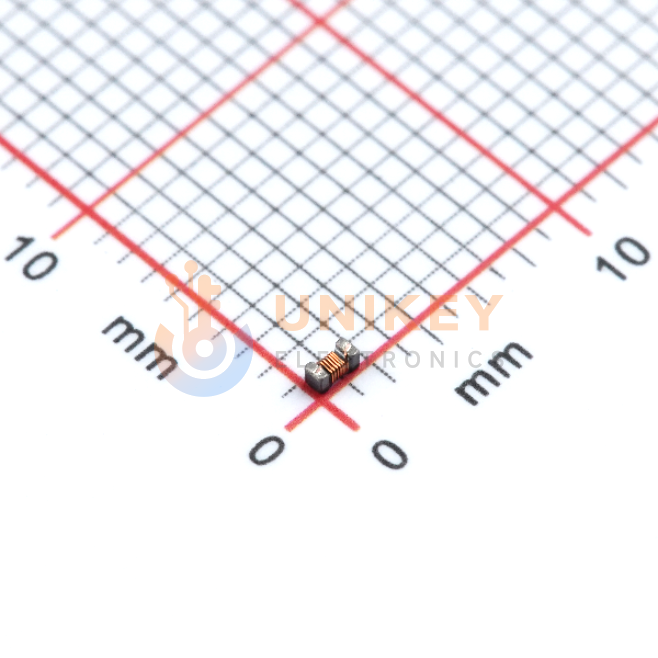

Images are for reference only
LQW18CNR16J00D
10MHz 900MHz 1A 50@10MHz 160nH 100mΩ ±5% 0603 SMD mount 1.6mm*800μm*950μm
Other Names:LQW18CNR16J00D
Manufacturer:Murata
Manufacturer Part:LQW18CNR16J00D
Datasheet:Murata LQW18CNR16J00D Datasheet (PDF)
Email Document
In Stock
25,881 In stock, ready to ship
Quantity
5
Unit Price (USD)
$0.0546
Ext. Price (USD)
$0.27
Total price$0.27
MOQ5Mult5SPQ4,000DC2609+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0546
$0.05
4,000
$0.051
$204.00
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Frequency - Self Resonant | 900MHz |
| Inductance | 160 nH |
| Inductance Frequency-Test | 10 MHz |
| Q @ Freq | - |
| Current - Saturation (Isat) | - |
| Operating Temperature | -40°C ~ 85°C |
| Current Rating (Amps) | 1 A |
| DC Resistance (DCR) | 100mOhm Max |
| Material - Core | Ferrite |
| Height-Seated (Max) | 0.037" (0.95mm) |
| Package/Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Shielding | Unshielded |
| Base Product Number | LQW18CN |
| Mounting Type | Surface Mount |
| Ratings | - |
| Rid | 5333614 |
| Series | LQW18 |
| Supplier Device Package | 0603 (1608 Metric) |
| Tolerance | ±5% |
Frequently Asked Questions (FAQs)
The manufacturer documentation does not name a specific end application for LQW18CNR16J00D, so selection should be based on the Murata part specifications and the circuit requirements. It is documented as a chip inductor designed for solder mounting, with reflow soldering specified in the Murata notice information. For high-reliability uses such as aircraft, medical, transportation, or similar systems, Murata advises contacting them before use.
