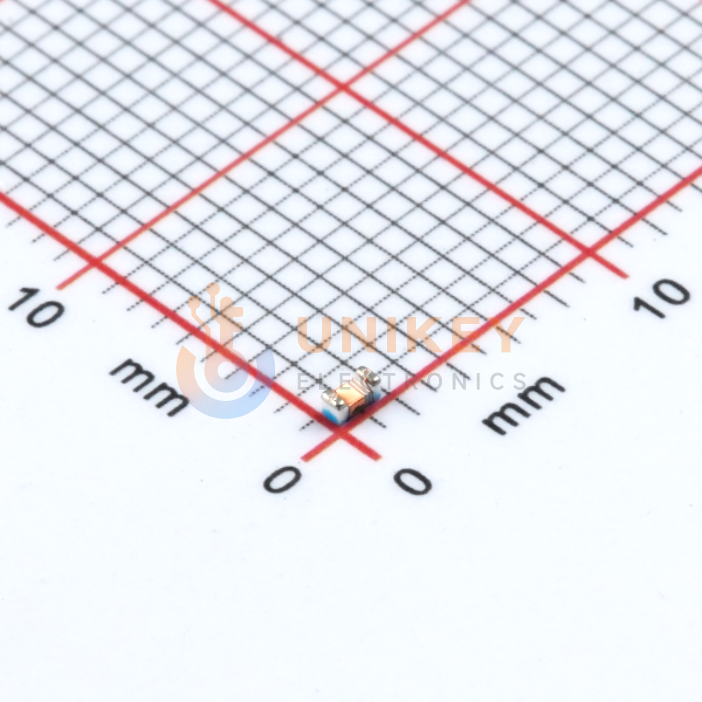

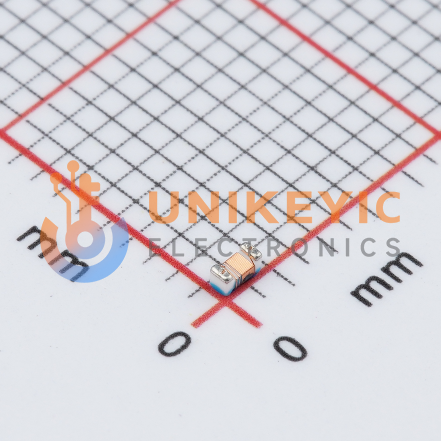

Images are for reference only
LQW18ANR10J00D
100MHz-1.8GHz 220mA 34Ω@150MHz 100nH 680mΩ ±5% 0603 SMD Ferrite Bead 1.6mm × 800μm × 1mm
Other Names:LQW18ANR10J00D
Manufacturer:Murata
Manufacturer Part:LQW18ANR10J00D
Datasheet:Murata LQW18ANR10J00D Datasheet (PDF)
Email Document
In Stock
10,727 In stock, ready to ship
Quantity
5
Unit Price (USD)
$0.0638
Ext. Price (USD)
$0.31
Total price$0.31
MOQ5Mult5SPQ4,000DC2501+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.0638
$0.31
50
$0.0498
$2.49
500
$0.0378
$18.90
1,000
$0.0335
$33.50
4,000
$0.0284
$113.60
20,000
$0.0262
$524.00
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Frequency - Self Resonant | 1.8GHz |
| Inductance | 100 nH |
| Inductance Frequency-Test | 100 MHz |
| Q @ Freq | 34 @ 150MHz |
| Current - Saturation (Isat) | - |
| Operating Temperature | -55°C ~ 125°C |
| Current Rating (Amps) | 220 mA |
| DC Resistance (DCR) | 680mOhm Max |
| Material - Core | Non-Magnetic |
| Height-Seated (Max) | 0.039" (1.00mm) |
| Package/Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Shielding | Unshielded |
| Base Product Number | LQW18AN |
| Features | - |
| Mounting Type | Surface Mount |
| Ratings | - |
| Rid | 639221 |
| Series | LQW18 |
| Supplier Device Package | - |
| Tolerance | ±5% |
