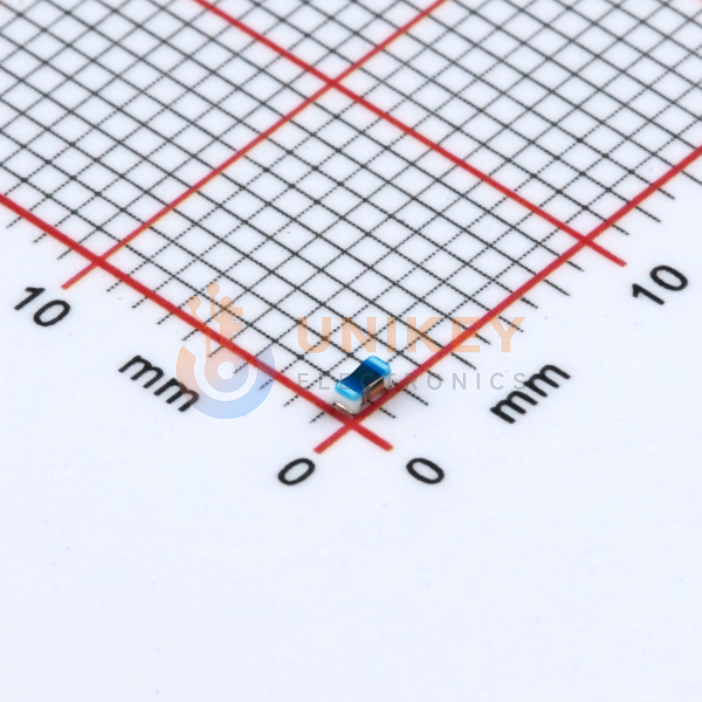

Murata LQW18ANR10G00D image
Images are for reference only

LQW18ANR10G00D

Ferrite Bead, SMD, 100MHz-1.8GHz, 220mA, 34Ω@150MHz, 100nH, 680mΩ, ±2%, 0603, 1.6mm × 800μm × 1mm

Other Names:LQW18ANR10G00D

Manufacturer:Murata

Manufacturer Part:LQW18ANR10G00D

Email Document
ECAD Model:

In Stock

236,575 In stock, ready to ship

Quantity

10

Unit Price (USD)

$0.0233

Ext. Price (USD)

$0.23

Total price$0.23
MOQ10Mult10SPQ4,000DC2605+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0233
$0.02
4,000
$0.0206
$82.40
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
1.8GHz
Inductance
100 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
34 @ 150MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
220 mA
DC Resistance (DCR)
680mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.039" (1.00mm)
Package/Case
0603 (1608 Metric)
Size / Dimension
0.063" L x 0.031" W (1.60mm x 0.80mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQW18AN
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
3847131
Series
LQW18
Supplier Device Package
-
Tolerance
±2%
