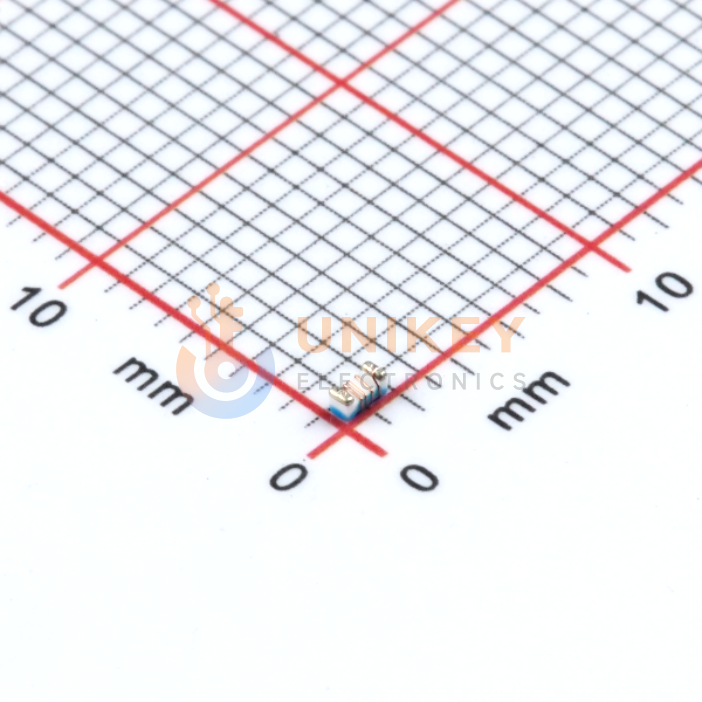

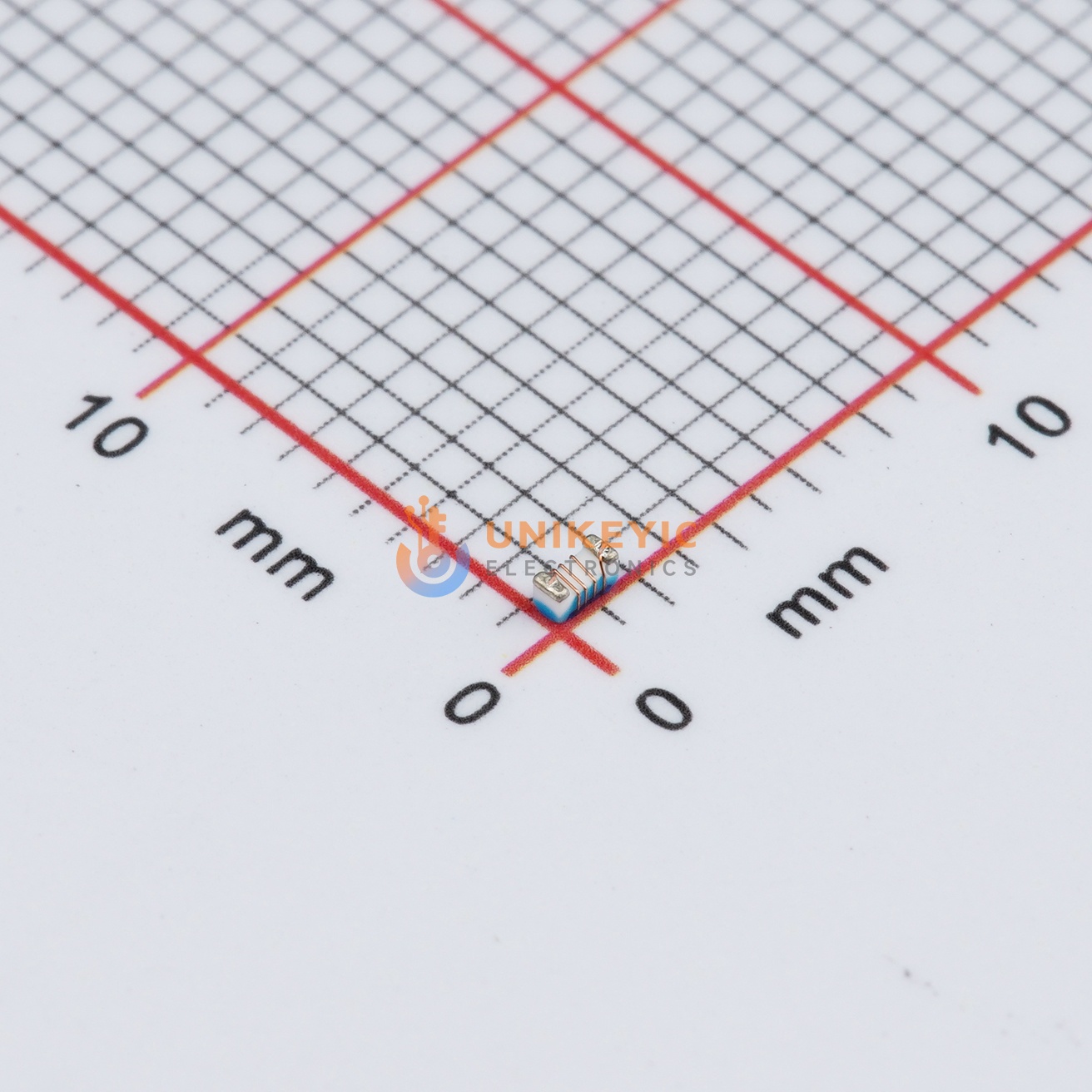

Murata LQW18AN8N2D00D image
Images are for reference only

LQW18AN8N2D00D

100MHz 6GHz 700mA 650mA 35@250MHz 8.2nH 110mΩ ±0.5nH 0603 SMD mount 1.6mm*800μm*1mm

Other Names:LQW18AN8N2D00D

Manufacturer:Murata

Manufacturer Part:LQW18AN8N2D00D

Email Document
ECAD Model:

In Stock

60,905 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0223

Ext. Price (USD)

$0.11

Total price$0.11
MOQ5Mult5SPQ4,000DC2344+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0223
$0.02
4,000
$0.0198
$79.20
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
6GHz
Inductance
8.2 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
35 @ 250MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
650 mA
DC Resistance (DCR)
110mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.039" (1.00mm)
Package/Case
0603 (1608 Metric)
Size / Dimension
0.063" L x 0.031" W (1.60mm x 0.80mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQW18AN
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
584612
Series
LQW18
Supplier Device Package
-
Tolerance
±0.5nH
