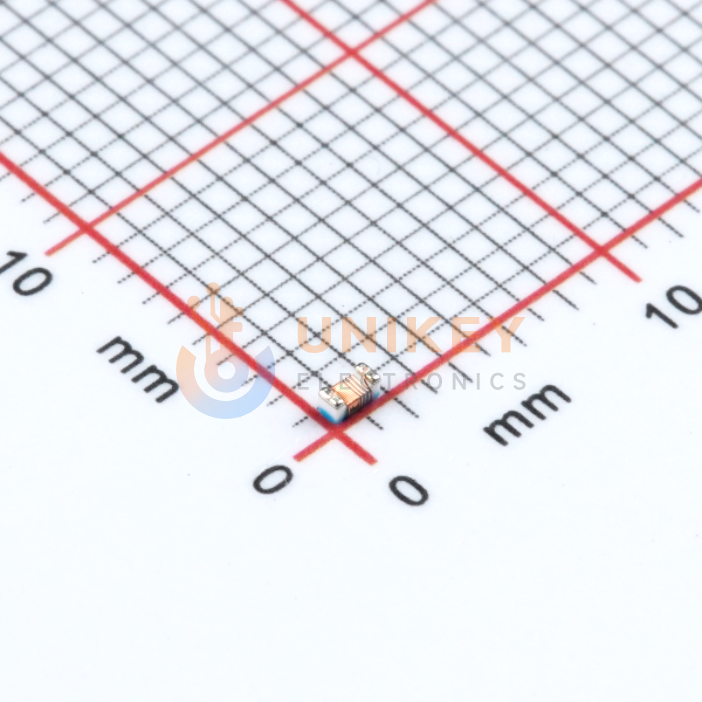

Images are for reference only
LQW18AN56NG00D
Ferrite Bead 100MHz-2.4GHz 1.7A 360mA 38Ω@200MHz 56nH 350mΩ ±2% 0603 SMD 1.6mm × 800μm × 1mm
Other Names:LQW18AN56NG00D
more
LQW18AN56NG00D
Manufacturer:Murata
Manufacturer Part:LQW18AN56NG00D
Datasheet:Murata LQW18AN56NG00D Datasheet (PDF)
Email Document
In Stock
22,164 In stock, ready to ship
Quantity
20
Unit Price (USD)
$0.022
Ext. Price (USD)
$0.44
Total price$0.44
MOQ20Mult20SPQ4,000DC2609+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.022
$0.02
4,000
$0.0196
$78.40
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Frequency - Self Resonant | 2.4GHz |
| Inductance | 56 nH |
| Inductance Frequency-Test | 100 MHz |
| Q @ Freq | 38 @ 200MHz |
| Current - Saturation (Isat) | - |
| Operating Temperature | -55°C ~ 125°C |
| Current Rating (Amps) | 360 mA |
| DC Resistance (DCR) | 350mOhm Max |
| Material - Core | Non-Magnetic |
| Height-Seated (Max) | 0.039" (1.00mm) |
| Package/Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Shielding | Unshielded |
| Base Product Number | LQW18AN |
| Features | - |
| Mounting Type | Surface Mount |
| Ratings | - |
| Rid | 3847112 |
| Series | LQW18 |
| Supplier Device Package | - |
| Tolerance | ±2% |
