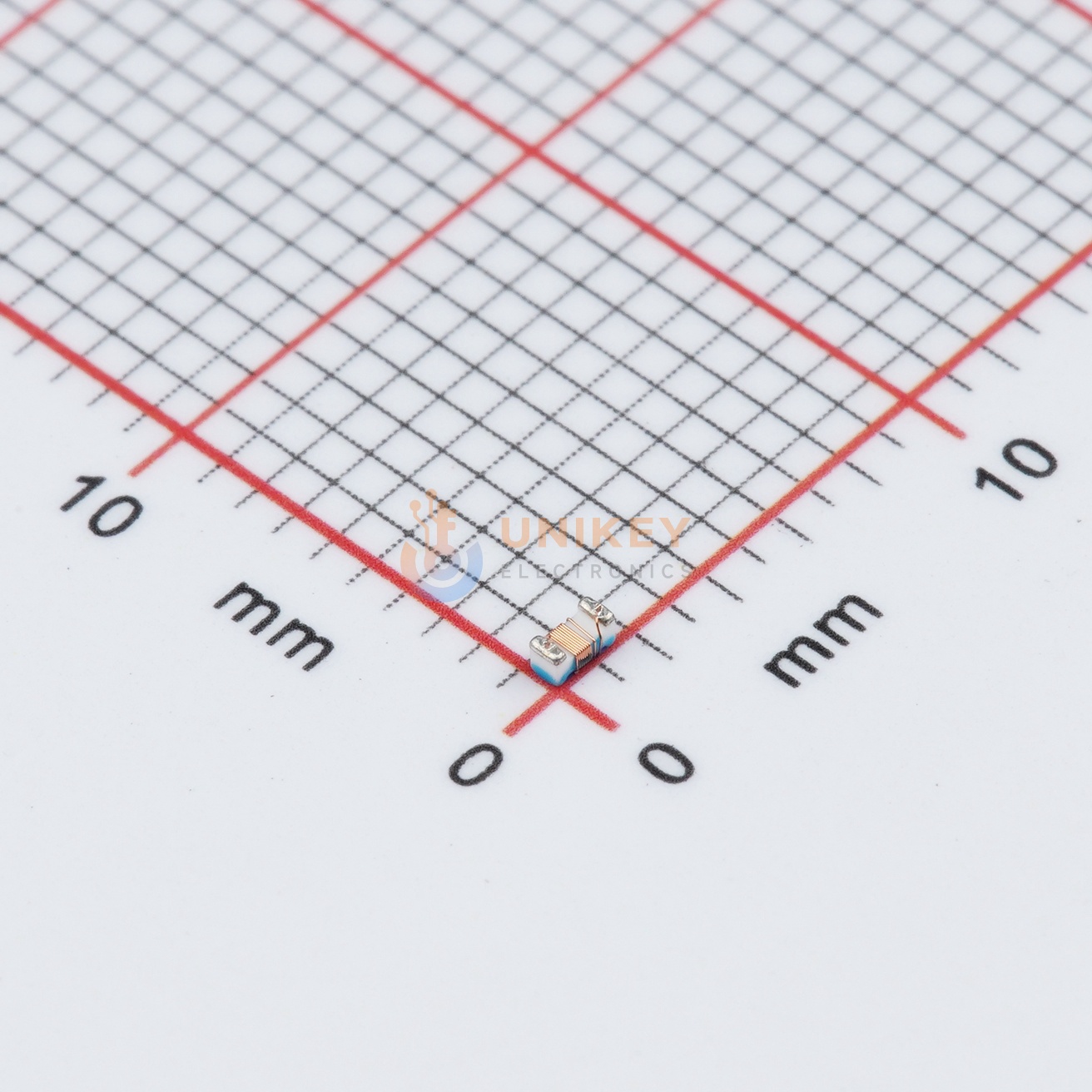

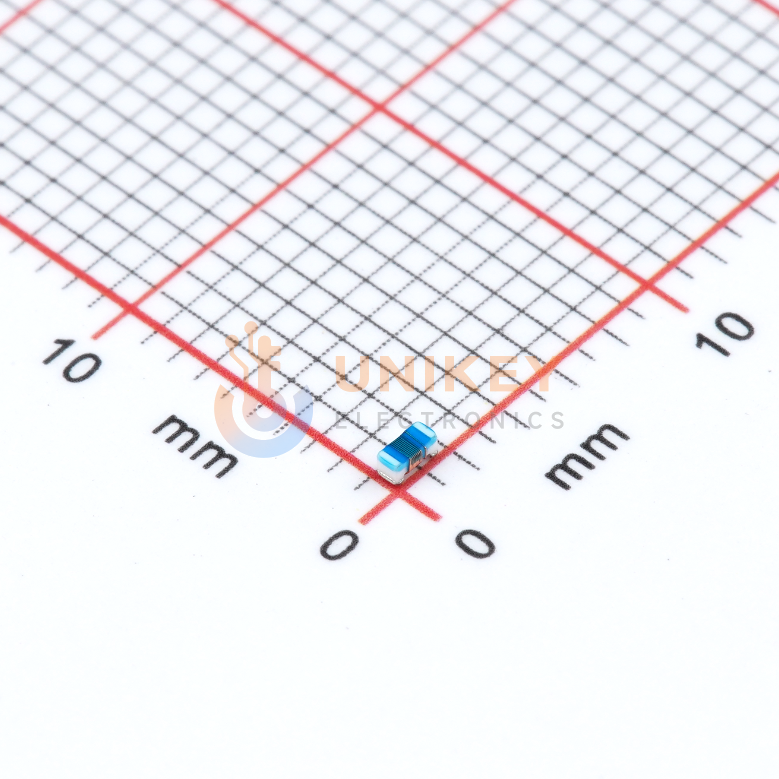

Murata LQW18AN47NJ00D image
Images are for reference only

LQW18AN47NJ00D

100MHz 2.6GHz 1.2A 380mA 38@200MHz 47nH 290mΩ ±5% 0603 SMD mount 1.6mm*800μm*1mm

Other Names:LQW18AN47NJ00D

Manufacturer:Murata

Manufacturer Part:LQW18AN47NJ00D

Email Document
ECAD Model:

In Stock

12,863 In stock, ready to ship

Quantity

10

Unit Price (USD)

$0.0414

Ext. Price (USD)

$0.41

Total price$0.41
MOQ10Mult5SPQ4,000DC2544+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
10
$0.0414
$0.41
100
$0.0332
$3.32
300
$0.0292
$8.76
1,000
$0.0261
$26.10
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
2.6GHz
Inductance
47 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
38 @ 200MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
380 mA
DC Resistance (DCR)
290mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.039" (1.00mm)
Package/Case
0603 (1608 Metric)
Size / Dimension
0.063" L x 0.031" W (1.60mm x 0.80mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQW18AN
Features
-
Mounting Type
Surface Mount
Ratings
-
Series
LQW18
Supplier Device Package
-
Tolerance
±5%
