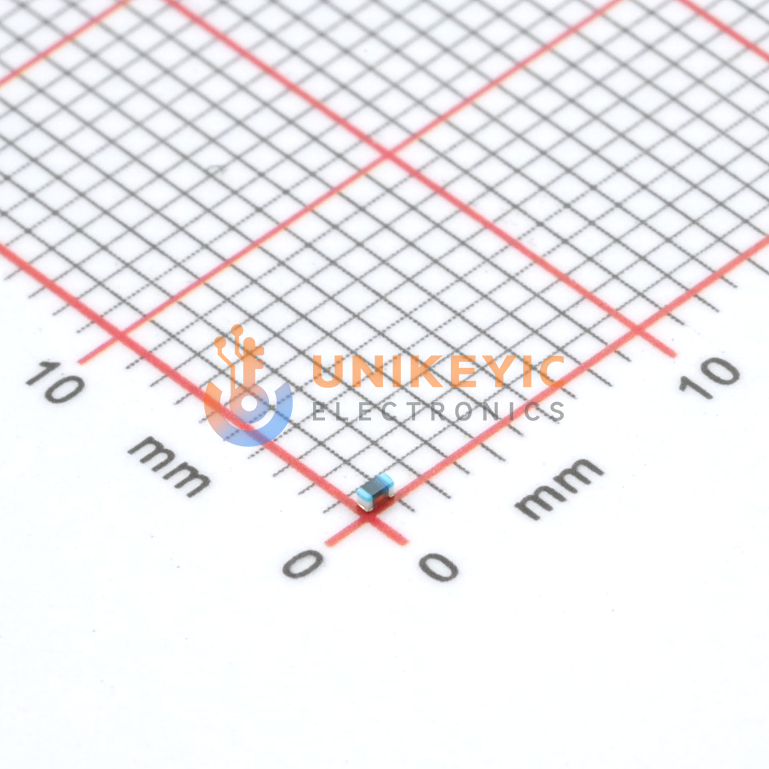

Murata LQW15AN56NJ00D image
Murata LQW15AN56NJ00D image
Images are for reference only

LQW15AN56NJ00D

100MHz 2.8GHz 200mA 25@200MHz 56nH 1.17Ω ±5% 0402 SMD mount 1mm*500μm*600μm

Other Names:LQW15AN56NJ00D

Manufacturer:Murata

Manufacturer Part:LQW15AN56NJ00D

Email Document
ECAD Model:

In Stock

10,000 In stock, ready to ship

Quantity

10,000

Unit Price (USD)

$0.0251

Ext. Price (USD)

$251.00

Total price$251.00
MOQ10,000Mult10,000SPQ10,000DC2640+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
10,000
$0.0251
$251.00
30,000
$0.0236
$708.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
2.8GHz
Inductance
56 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
25 @ 200MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
200 mA
DC Resistance (DCR)
1.17Ohm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.024" (0.60mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQW15AN
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
584364
Series
LQW15
Supplier Device Package
-
Tolerance
±5%
