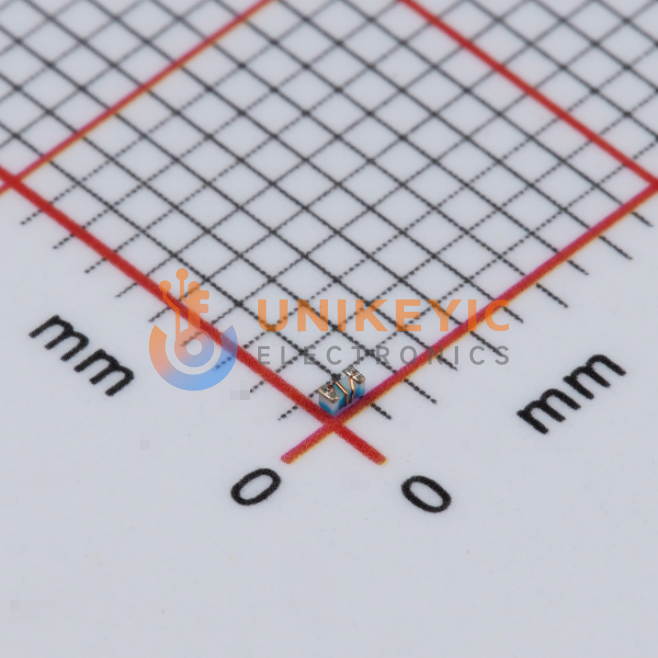

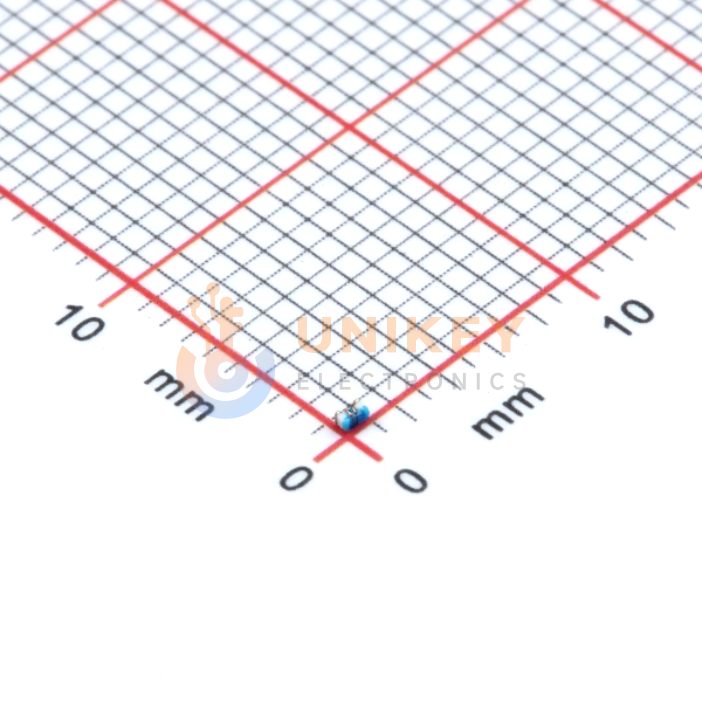

Murata LQW15AN2N2C10D image
Images are for reference only

LQW15AN2N2C10D

100MHz 14GHz 1.5A 1A 25@250MHz 2.2nH 27mΩ ±0.2nH 0402 SMD mount 1mm*600μm*600μm

Other Names:LQW15AN2N2C10D

Manufacturer:Murata

Manufacturer Part:LQW15AN2N2C10D

Email Document
ECAD Model:

In Stock

335,794 In stock, ready to ship

Quantity

10

Unit Price (USD)

$0.0292

Ext. Price (USD)

$0.29

Total price$0.29
MOQ10Mult10SPQ10,000DC2618+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0292
$0.02
10,000
$0.0266
$266.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
14GHz
Inductance
2.2 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
25 @ 250MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
1 A
DC Resistance (DCR)
27mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.024" (0.60mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.024" W (1.00mm x 0.60mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQW15AN
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
2118503
Series
LQW15
Supplier Device Package
-
Tolerance
±0.2nH
