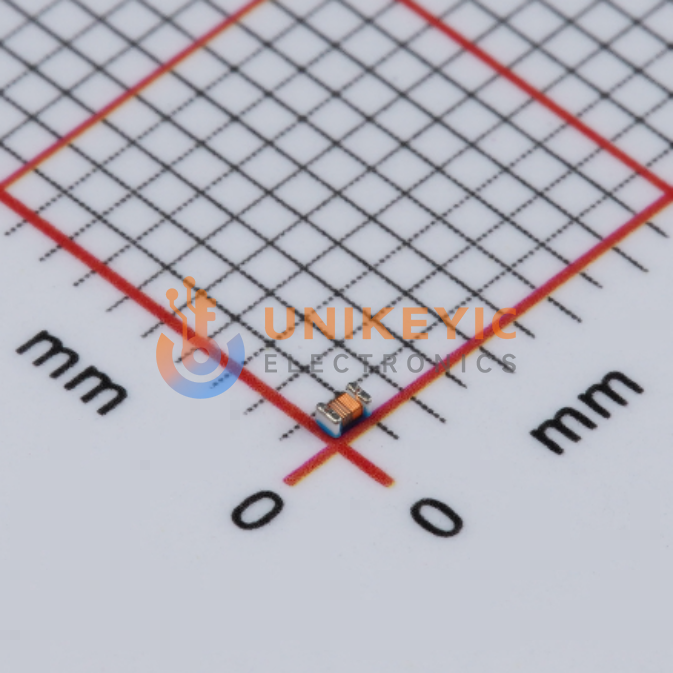

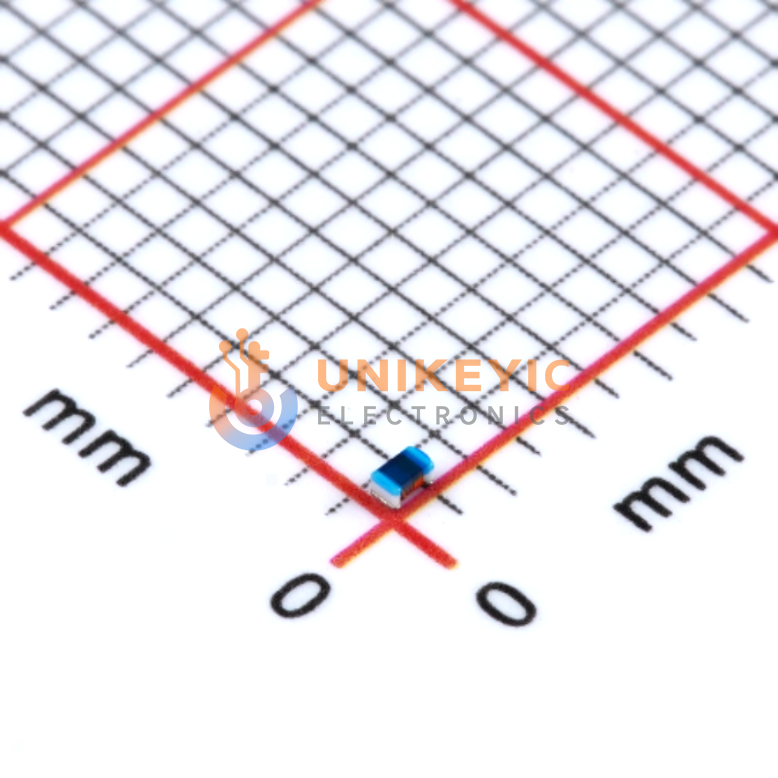

Murata LQW15AN27NG8ZD image
Images are for reference only

LQW15AN27NG8ZD

Ferrite Bead 100MHz-4GHz 680mA 30Ω@250MHz 27nH 288mΩ ±2% 0402 SMD 1mm × 600μm × 600μm

Other Names:LQW15AN27NG8ZD

Manufacturer:Murata

Manufacturer Part:LQW15AN27NG8ZD

Email Document
ECAD Model:

In Stock

5 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.022

Ext. Price (USD)

$0.11

Total price$0.11
MOQ5Mult1SPQ10,000DC2201+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.022
$0.11
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
4GHz
Inductance
27 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
30 @ 250MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
680 mA
DC Resistance (DCR)
288mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.024" (0.60mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.024" W (1.00mm x 0.60mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQW15AN
Features
-
Mounting Type
Surface Mount
Ratings
AEC-Q200
Rid
6800038
Series
LQW15
Supplier Device Package
-
Tolerance
±2%
