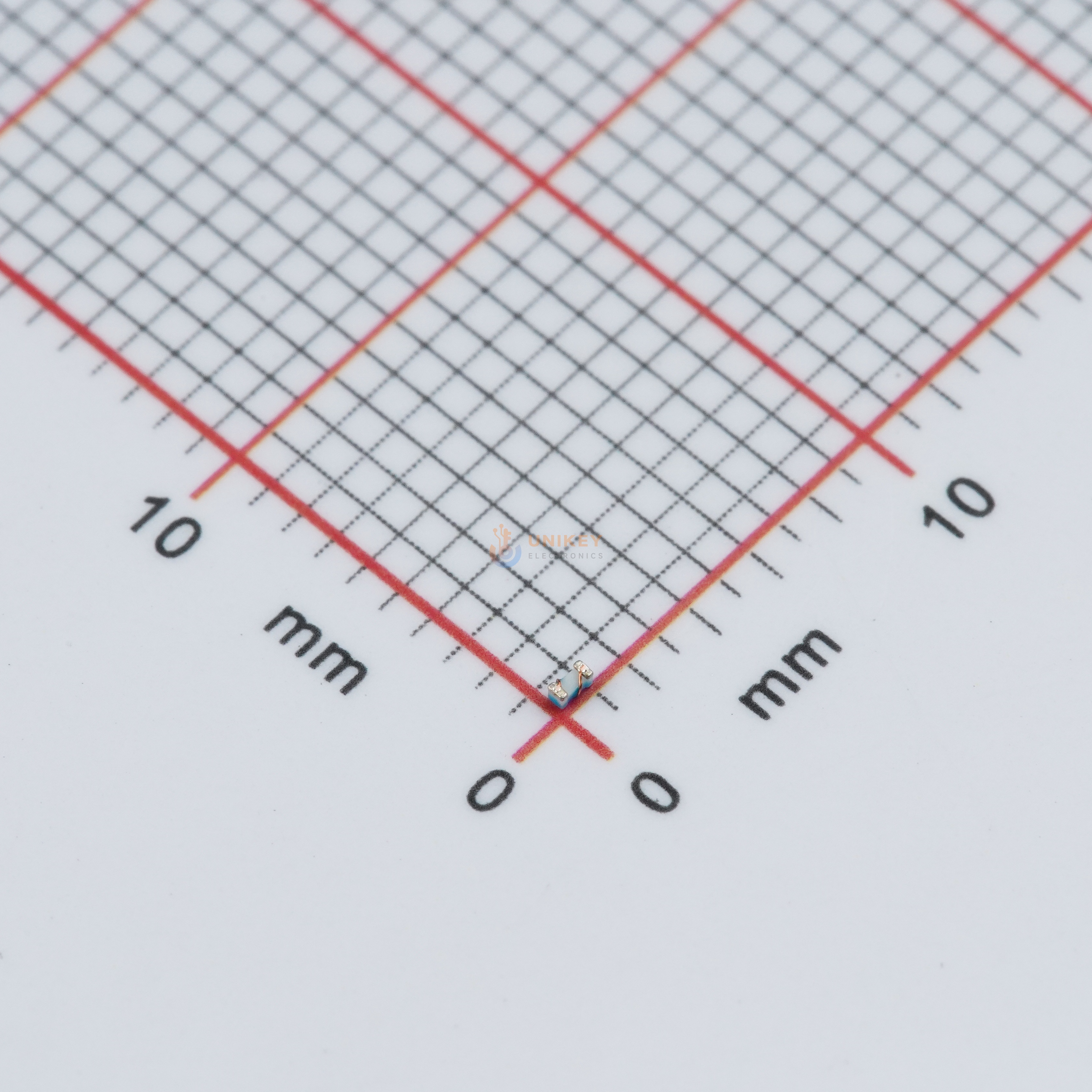

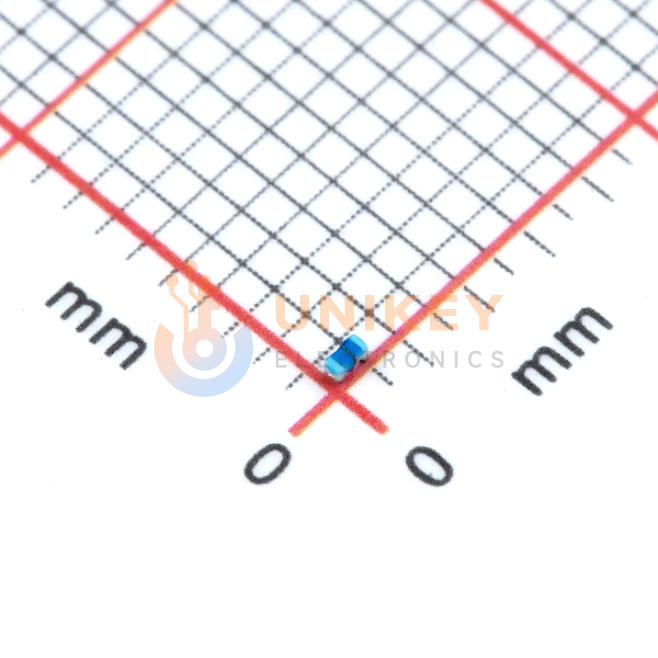

Murata LQW15AN1N3C10D image
Images are for reference only

LQW15AN1N3C10D

100MHz 16GHz 3A 1.2A 20@250MHz 1.3nH 17mΩ ±0.2nH 0402 SMD mount 1mm*600μm*600μm

Other Names:LQW15AN1N3C10D

more
LQW15AN1N3C10D

Manufacturer:Murata

Manufacturer Part:LQW15AN1N3C10D

Email Document
ECAD Model:

In Stock

47 In stock, ready to ship

Quantity

47

Unit Price (USD)

$0.0659

Ext. Price (USD)

$3.09

Total price$3.09
MOQ47Mult1SPQ10,000DC2402+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
10
$0.0659
$0.65
100
$0.0558
$5.58
300
$0.0508
$15.24
1,000
$0.047
$47.00
5,000
$0.0347
$173.50
10,000
$0.0332
$332.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
16GHz
Inductance
1.3 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
20 @ 250MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
1.2 A
DC Resistance (DCR)
17mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.024" (0.60mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.024" W (1.00mm x 0.60mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQW15AN
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
3845977
Series
LQW15
Supplier Device Package
-
Tolerance
±0.2nH
