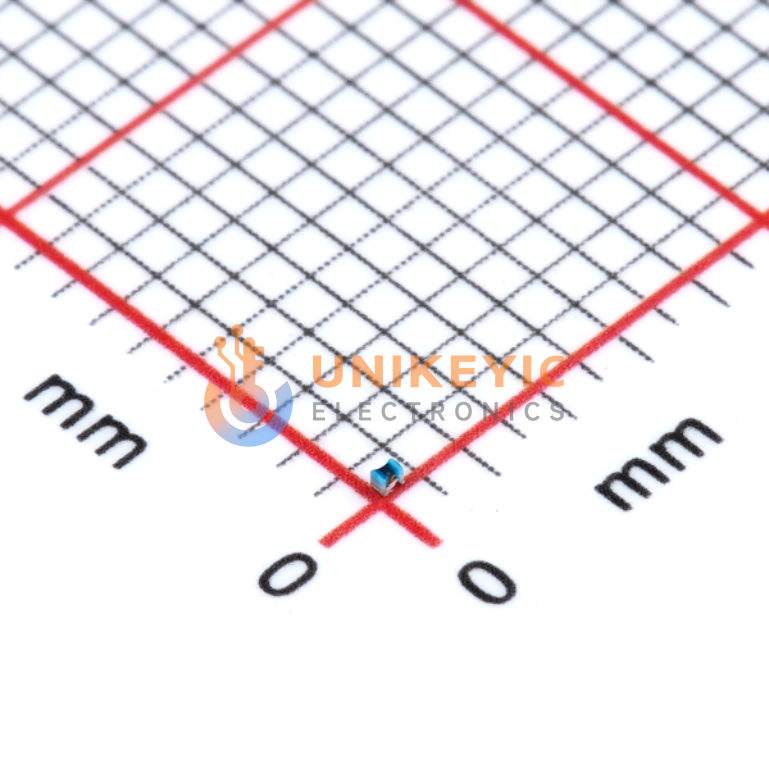

Images are for reference only
LQW03AW8N2J00D
100MHz-8.5GHz 290mA 40Ω@900MHz 8.2nH 260mΩ ±5% 0201 SMD 530μm × 400μm × 450μm
Other Names:LQW03AW8N2J00D
Manufacturer:Murata
Manufacturer Part:LQW03AW8N2J00D
Datasheet:Murata LQW03AW8N2J00D Datasheet (PDF)
Email Document
In Stock
77,107 In stock, ready to ship
Quantity
5
Unit Price (USD)
$0.1745
Ext. Price (USD)
$0.87
Total price$0.87
MOQ5Mult5SPQ10,000DC2615+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1745
$0.87
50
$0.1391
$6.95
150
$0.1233
$18.49
500
$0.1045
$52.25
2,500
$0.0962
$240.50
5,000
$0.0911
$455.50
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Frequency - Self Resonant | 8.5GHz |
| Inductance | 8.2 nH |
| Inductance Frequency-Test | 100 MHz |
| Q @ Freq | 40 @ 900MHz |
| Current - Saturation (Isat) | - |
| Operating Temperature | -55°C ~ 125°C |
| Current Rating (Amps) | 290 mA |
| DC Resistance (DCR) | 260mOhm Max |
| Material - Core | - |
| Height-Seated (Max) | 0.018" (0.45mm) |
| Package/Case | 0201 (0603 Metric) |
| Size / Dimension | 0.021" L x 0.016" W (0.53mm x 0.40mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Shielding | Unshielded |
| Base Product Number | LQW03AW |
| Mounting Type | Surface Mount |
| Ratings | - |
| Rid | 6098641 |
| Series | LQW03 |
| Tolerance | ±5% |
