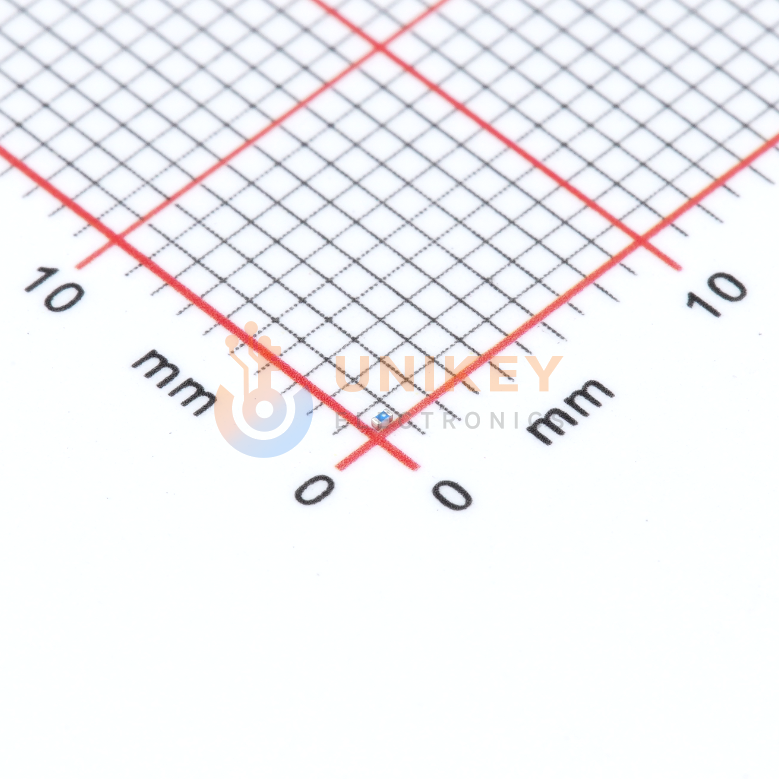

Murata LQP03TNR12J02D image
Images are for reference only

LQP03TNR12J02D

Ferrite Bead, 300MHz-800MHz, 80mA, 8Ω@300MHz, 120nH, 12Ω ±5%, 0201, SMD, 600μm × 300μm × 330μm

Other Names:LQP03TNR12J02D

Manufacturer:Murata

Manufacturer Part:LQP03TNR12J02D

Email Document
ECAD Model:

In Stock

10,500 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.0216

Ext. Price (USD)

$0.02

Total price$0.02
MOQ1Mult1SPQ15,000DC25+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0216
$0.02
500
$0.0072
$3.60
7,500
$0.005
$37.50
15,000
$0.0039
$58.50
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
800MHz
Inductance
120 nH
Inductance Frequency-Test
300 MHz
Q @ Freq
8 @ 300MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
40 mA
DC Resistance (DCR)
12Ohm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.013" (0.33mm)
Package/Case
0201 (0603 Metric)
Size / Dimension
0.024" L x 0.012" W (0.60mm x 0.30mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQP03TN
Mounting Type
Surface Mount
Ratings
-
Rid
4381342
Series
LQP03
Supplier Device Package
0201 (0603 Metric)
Tolerance
±5%
