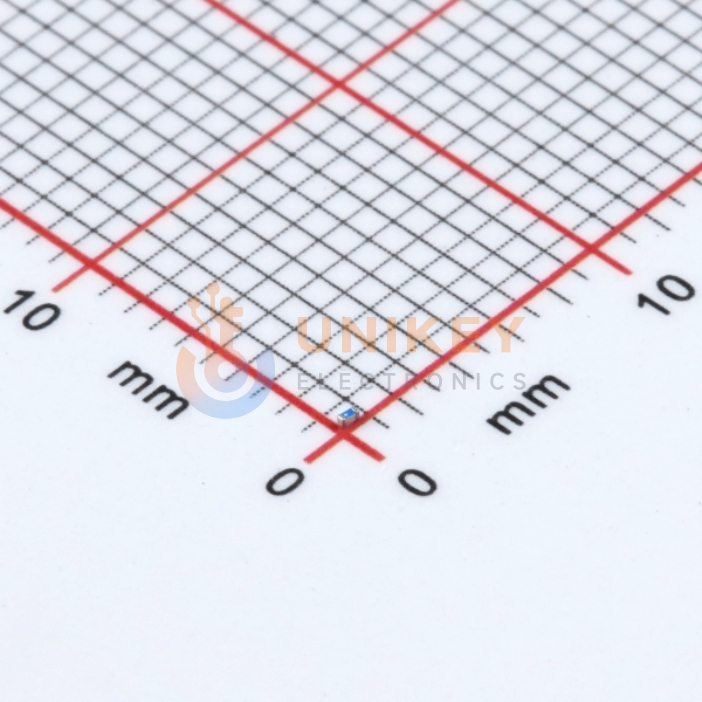

Murata LQP03TN6N8H02D image
Images are for reference only

LQP03TN6N8H02D

500MHz 3.9GHz 225mA 300mA 14@500MHz 6.8nH 600mΩ ±3% 0201 SMD mount 600μm*300μm*330μm

Other Names:LQP03TN6N8H02D

Manufacturer:Murata

Manufacturer Part:LQP03TN6N8H02D

Email Document
ECAD Model:

In Stock

19,696 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0081

Ext. Price (USD)

$0.40

Total price$0.40
MOQ50Mult5SPQ15,000DC2530+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.0081
$0.40
500
$0.0065
$3.25
1,500
$0.0056
$8.40
15,000
$0.0048
$72.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
3.9GHz
Inductance
6.8 nH
Inductance Frequency-Test
500 MHz
Q @ Freq
14 @ 500MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
300 mA
DC Resistance (DCR)
600mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.013" (0.33mm)
Package/Case
0201 (0603 Metric)
Size / Dimension
0.024" L x 0.012" W (0.60mm x 0.30mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQP03TN
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
5802524
Series
LQP03
Supplier Device Package
0201 (0603 Metric)
Tolerance
±3%
