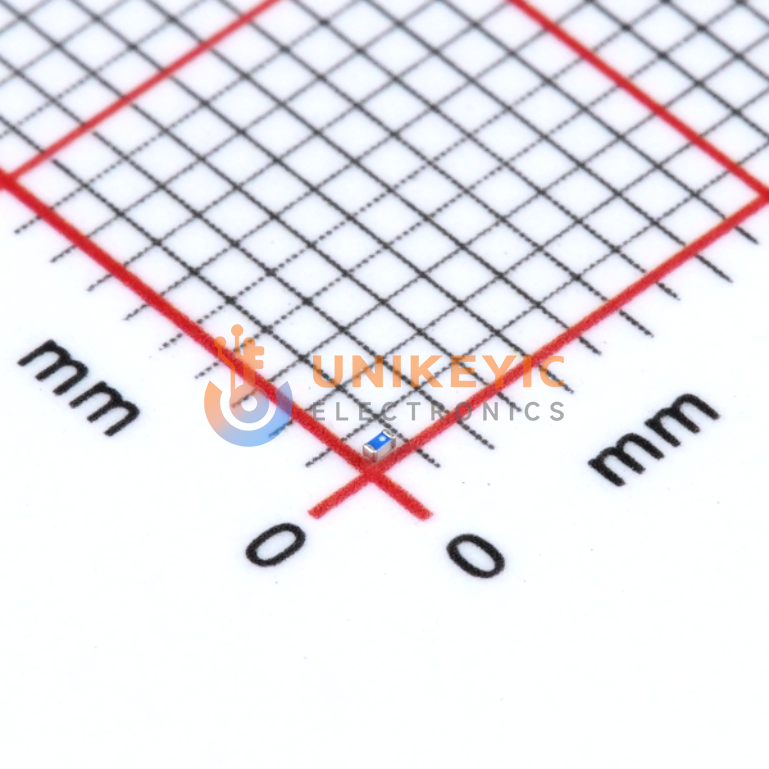

Murata LQP03TN6N2J02D image
Images are for reference only

LQP03TN6N2J02D

500MHz 4GHz 300mA 14Ω@500MHz 6.2nH 600mΩ ±5% 0201 SMD 600μm × 300μm × 330μm

Other Names:LQP03TN6N2J02D

Manufacturer:Murata

Manufacturer Part:LQP03TN6N2J02D

Email Document
ECAD Model:

Available Stock

Available to order:33,407
Estimated Ship Time:6-13 working days

Quantity

1,227

Unit Price (USD)

$0.0216

Ext. Price (USD)

$26.50

Total price$26.50
MOQ1,227Mult1SPQ1
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1,000
$0.0216
$21.60
5,000
$0.0173
$86.50
10,000
$0.0158
$158.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
4GHz
Inductance
6.2 nH
Inductance Frequency-Test
500 MHz
Q @ Freq
14 @ 500MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
300 mA
DC Resistance (DCR)
600mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.013" (0.33mm)
Package/Case
0201 (0603 Metric)
Size / Dimension
0.024" L x 0.012" W (0.60mm x 0.30mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQP03TN
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
2357634
Series
LQP03
Supplier Device Package
0201 (0603 Metric)
Tolerance
±5%
