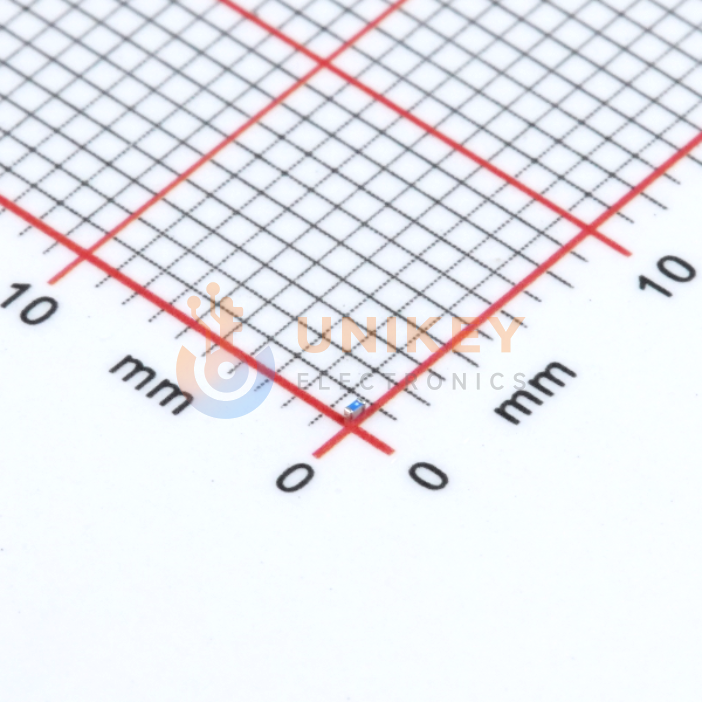

Murata LQP03TN4N7H02D image
Images are for reference only

LQP03TN4N7H02D

500MHz 4.4GHz 350mA 14Ω@500MHz 4.7nH 400mΩ ±3% 0201 SMD 600μm × 300μm × 330μm

Other Names:LQP03TN4N7H02D

Manufacturer:Murata

Manufacturer Part:LQP03TN4N7H02D

Email Document
ECAD Model:

In Stock

87,029 In stock, ready to ship

Quantity

100

Unit Price (USD)

$0.0077

Ext. Price (USD)

$0.77

Total price$0.77
MOQ100Mult100SPQ15,000DC2549+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
100
$0.0077
$0.77
1,000
$0.0061
$6.10
3,000
$0.0053
$15.90
15,000
$0.0046
$69.00
45,000
$0.0041
$184.50
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
4.4GHz
Inductance
4.7 nH
Inductance Frequency-Test
500 MHz
Q @ Freq
14 @ 500MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
350 mA
DC Resistance (DCR)
400mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.013" (0.33mm)
Package/Case
0201 (0603 Metric)
Size / Dimension
0.024" L x 0.012" W (0.60mm x 0.30mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQP03TN
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
5802528
Series
LQP03
Supplier Device Package
0201 (0603 Metric)
Tolerance
±3%

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

For Murata Manufacturing LQP03TN4N7H02D integration, check the manufacturer land pattern and soldering requirements before PCB release. The datasheet lists land dimensions of a 0.2–0.3 mm, b 0.8–0.9 mm, and c 0.2–0.3 mm, and states that the product is designed for reflow solder mounting. It also gives solder paste thickness of 100μm–150μm and cautions designers to reduce board-warping stress around the chip.
