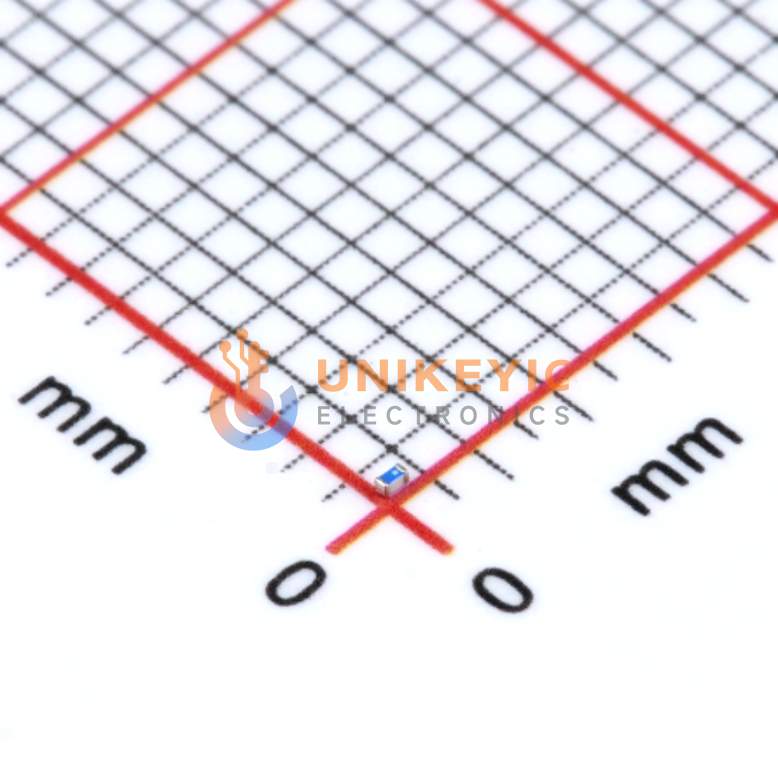

Images are for reference only
LQP03TN47NH02D
Ferrite Bead 300MHz-1.3GHz 100mA 9Ω@300MHz 47nH 3.6Ω ±3% 0201 SMD 600μm×300μm×330μm
Other Names:LQP03TN47NH02D
Manufacturer:Murata
Manufacturer Part:LQP03TN47NH02D
Datasheet:Murata LQP03TN47NH02D Datasheet (PDF)
Email Document
In Stock
21,416 In stock, ready to ship
Quantity
100
Unit Price (USD)
$0.0049
Ext. Price (USD)
$0.49
Total price$0.49
MOQ100Mult100SPQ15,000DC2603+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0049
$0.00
15,000
$0.0039
$58.50
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Frequency - Self Resonant | 1.3GHz |
| Inductance | 47 nH |
| Inductance Frequency-Test | 300 MHz |
| Q @ Freq | 9 @ 300MHz |
| Current - Saturation (Isat) | - |
| Operating Temperature | -55°C ~ 125°C |
| Current Rating (Amps) | 100 mA |
| DC Resistance (DCR) | 3.6Ohm Max |
| Material - Core | Non-Magnetic |
| Height-Seated (Max) | 0.013" (0.33mm) |
| Package/Case | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Shielding | Unshielded |
| Base Product Number | LQP03TN |
| Mounting Type | Surface Mount |
| Ratings | - |
| Series | LQP03 |
| Supplier Device Package | 0201 (0603 Metric) |
| Tolerance | ±3% |
