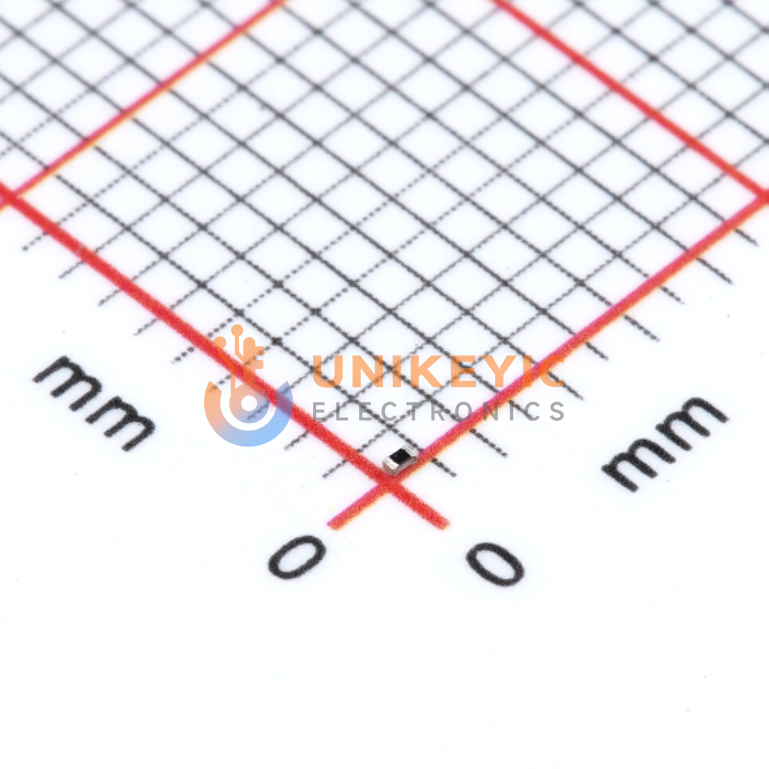

Murata LQP03TN3N6C02D image
Images are for reference only

LQP03TN3N6C02D

Ferrite Bead 500MHz-6GHz 400mA 14Ω@500MHz 3.6nH ±0.2nH 300mΩ 0201 SMD 600μm × 300μm × 330μm

Other Names:LQP03TN3N6C02D

Manufacturer:Murata

Manufacturer Part:LQP03TN3N6C02D

Email Document
ECAD Model:

Available Stock

Available to order:30,284
Estimated Ship Time:6-13 working days

Quantity

1,227

Unit Price (USD)

$0.0216

Ext. Price (USD)

$26.50

Total price$26.50
MOQ1,227Mult1SPQ1
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1,000
$0.0216
$21.60
5,000
$0.0184
$92.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
6GHz
Inductance
3.6 nH
Inductance Frequency-Test
500 MHz
Q @ Freq
14 @ 500MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
400 mA
DC Resistance (DCR)
300mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.013" (0.33mm)
Package/Case
0201 (0603 Metric)
Size / Dimension
0.024" L x 0.012" W (0.60mm x 0.30mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQP03TN
Mounting Type
Surface Mount
Ratings
-
Rid
2357686
Series
LQP03
Supplier Device Package
0201 (0603 Metric)
Tolerance
±0.2nH
