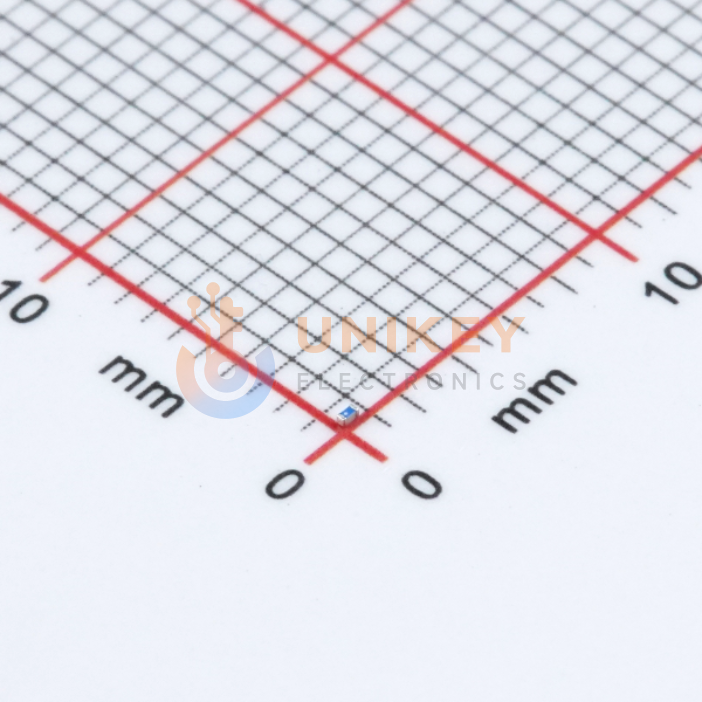

Murata LQP03TN3N6B02D image
Images are for reference only

LQP03TN3N6B02D

Ferrite Bead 400mA 3.6nH 300mΩ ±0.1nH 14Ω@500MHz 0201 SMD 600μm × 300μm × 330μm

Other Names:LQP03TN3N6B02D

Manufacturer:Murata

Manufacturer Part:LQP03TN3N6B02D

Email Document
ECAD Model:

In Stock

50,729 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0062

Ext. Price (USD)

$0.03

Total price$0.03
MOQ5Mult5SPQ15,000DC2614+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0062
$0.00
15,000
$0.0049
$73.50
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
6GHz
Inductance
3.6 nH
Inductance Frequency-Test
500 MHz
Q @ Freq
14 @ 500MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
400 mA
DC Resistance (DCR)
300mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.013" (0.33mm)
Package/Case
0201 (0603 Metric)
Size / Dimension
0.024" L x 0.012" W (0.60mm x 0.30mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQP03TN
Mounting Type
Surface Mount
Ratings
-
Rid
2391747
Series
LQP03
Supplier Device Package
0201 (0603 Metric)
Tolerance
±0.1nH
