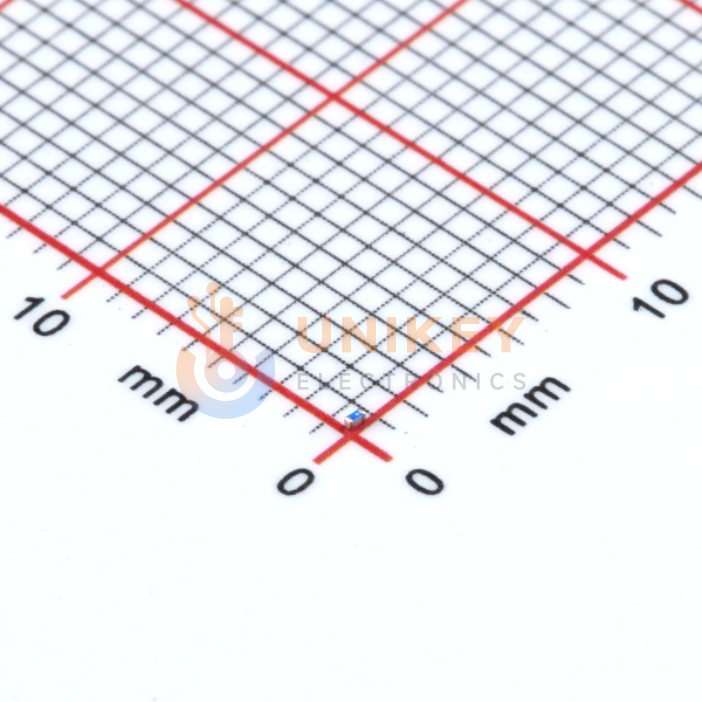

Murata LQP03TN3N3B02D image
Images are for reference only

LQP03TN3N3B02D

500MHz 8GHz 225mA 450mA 14@500MHz 3.3nH 250mΩ ±0.1nH 0201 SMD mount 600μm*300μm*330μm

Other Names:LQP03TN3N3B02D

Manufacturer:Murata

Manufacturer Part:LQP03TN3N3B02D

Email Document
ECAD Model:

In Stock

107,384 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0047

Ext. Price (USD)

$0.23

Total price$0.23
MOQ50Mult50SPQ15,000DC2520+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0047
$0.00
15,000
$0.0038
$57.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
8GHz
Inductance
3.3 nH
Inductance Frequency-Test
500 MHz
Q @ Freq
14 @ 500MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
450 mA
DC Resistance (DCR)
250mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.013" (0.33mm)
Package/Case
0201 (0603 Metric)
Size / Dimension
0.024" L x 0.012" W (0.60mm x 0.30mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQP03TN
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
2391746
Series
LQP03
Supplier Device Package
0201 (0603 Metric)
Tolerance
±0.1nH
