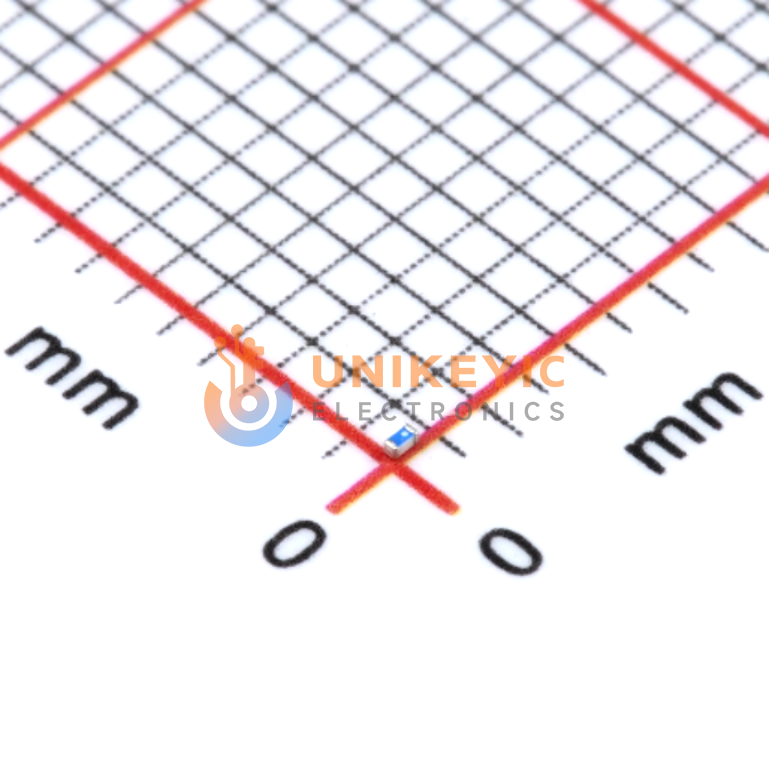

Images are for reference only
LQP03TN2N7C02D
500MHz 10GHz 500mA 14@500MHz 2.7nH 200mΩ ±0.2nH 0201 SMD mount 600μm*300μm*330μm
Other Names:LQP03TN2N7C02D
Manufacturer:Murata
Manufacturer Part:LQP03TN2N7C02D
Datasheet:Murata LQP03TN2N7C02D Datasheet (PDF)
Email Document
In Stock
16,899 In stock, ready to ship
Quantity
50
Unit Price (USD)
$0.0023
Ext. Price (USD)
$0.11
Total price$0.11
MOQ50Mult1SPQ15,000DC1931+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.0023
$0.11
500
$0.0022
$1.10
1,500
$0.0021
$3.15
5,000
$0.0018
$9.00
15,000
$0.0017
$25.50
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Frequency - Self Resonant | 10GHz |
| Inductance | 2.7 nH |
| Inductance Frequency-Test | 500 MHz |
| Q @ Freq | 14 @ 500MHz |
| Current - Saturation (Isat) | - |
| Operating Temperature | -55°C ~ 125°C |
| Current Rating (Amps) | 500 mA |
| DC Resistance (DCR) | 200mOhm Max |
| Material - Core | Non-Magnetic |
| Height-Seated (Max) | 0.013" (0.33mm) |
| Package/Case | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Shielding | Unshielded |
| Base Product Number | LQP03TN |
| Features | - |
| Mounting Type | Surface Mount |
| Ratings | - |
| Rid | 2357683 |
| Series | LQP03 |
| Supplier Device Package | 0201 (0603 Metric) |
| Tolerance | ±0.2nH |
