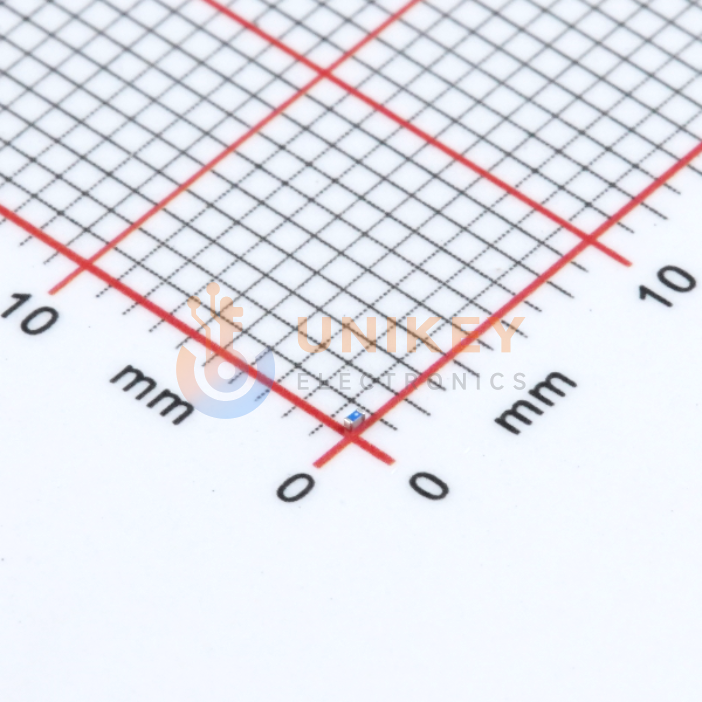

Murata LQP03TN2N7B02D image
Images are for reference only

LQP03TN2N7B02D

Ferrite Bead 500MHz-10GHz 500mA 14Ω@500MHz 2.7nH 200mΩ ±0.1nH 0201 SMD 600μm × 300μm × 330μm

Other Names:LQP03TN2N7B02D

Manufacturer:Murata

Manufacturer Part:LQP03TN2N7B02D

Email Document
ECAD Model:

In Stock

168,032 In stock, ready to ship

Quantity

100

Unit Price (USD)

$0.005

Ext. Price (USD)

$0.50

Total price$0.50
MOQ100Mult100SPQ15,000DC2609+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.005
$0.00
15,000
$0.004
$60.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
10GHz
Inductance
2.7 nH
Inductance Frequency-Test
500 MHz
Q @ Freq
14 @ 500MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
500 mA
DC Resistance (DCR)
200mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.013" (0.33mm)
Package/Case
0201 (0603 Metric)
Size / Dimension
0.024" L x 0.012" W (0.60mm x 0.30mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQP03TN
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
5802516
Series
LQP03
Supplier Device Package
0201 (0603 Metric)
Tolerance
±0.1nH
