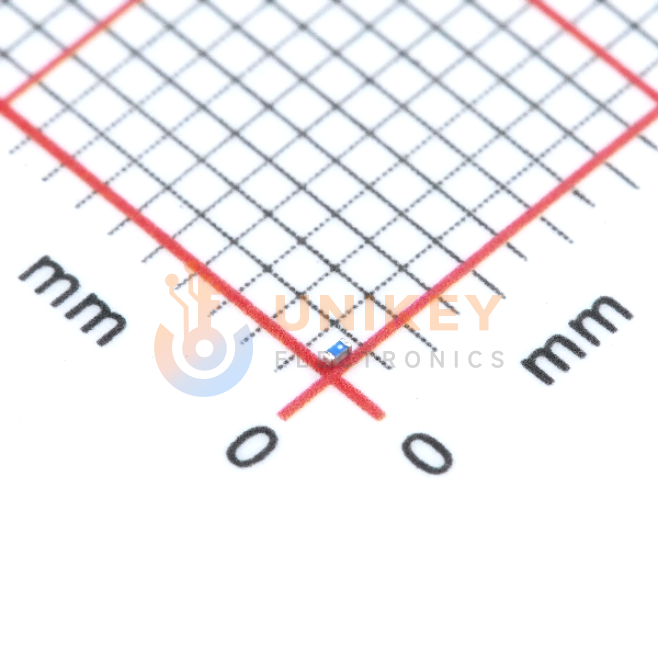

Images are for reference only
LQP03TN22NH02D
500MHz 2.2GHz 150mA 12@500MHz 22nH 1.9Ω ±3% 0201 SMD mount 600μm*300μm*330μm
Other Names:LQP03TN22NH02D
more
LQP03TN22NH02D
Manufacturer:Murata
Manufacturer Part:LQP03TN22NH02D
Datasheet:Murata LQP03TN22NH02D Datasheet (PDF)
Email Document
In Stock
21,847 In stock, ready to ship
Quantity
5
Unit Price (USD)
$0.0038
Ext. Price (USD)
$0.01
Total price$0.01
MOQ5Mult5SPQ15,000DC2637+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0038
$0.00
15,000
$0.003
$45.00
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Frequency - Self Resonant | 2.2GHz |
| Inductance | 22 nH |
| Inductance Frequency-Test | 500 MHz |
| Q @ Freq | 12 @ 500MHz |
| Current - Saturation (Isat) | - |
| Operating Temperature | -55°C ~ 125°C |
| Current Rating (Amps) | 150 mA |
| DC Resistance (DCR) | 1.9Ohm Max |
| Material - Core | Non-Magnetic |
| Height-Seated (Max) | 0.013" (0.33mm) |
| Package/Case | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Shielding | Unshielded |
| Base Product Number | LQP03TN |
| Features | - |
| Mounting Type | Surface Mount |
| Ratings | - |
| Rid | 5802512 |
| Series | LQP03 |
| Supplier Device Package | 0201 (0603 Metric) |
| Tolerance | ±3% |
