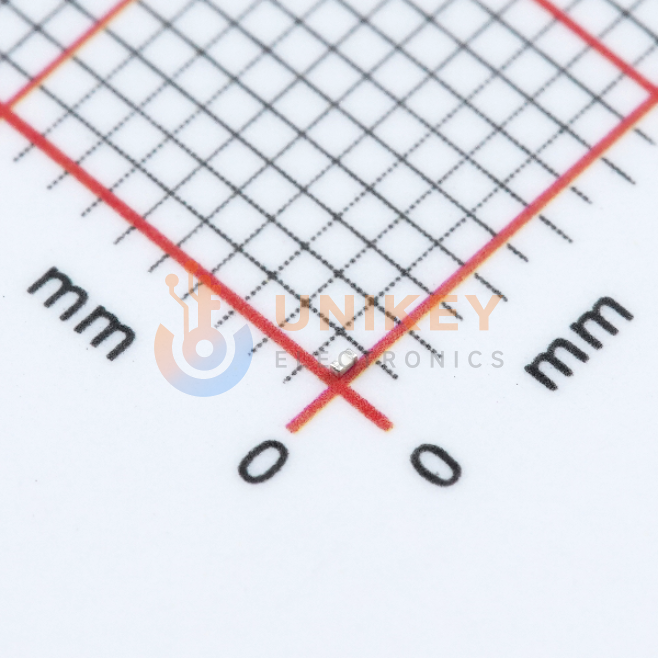

Murata LQP03TN15NJ02D image
Images are for reference only

LQP03TN15NJ02D

Ferrite Bead, SMD 0201, 500MHz-2.6GHz, 250mA, 12Ω@500MHz, 15nH, 700mΩ ±5%, 600μm × 300μm × 330μm

Other Names:LQP03TN15NJ02D

Manufacturer:Murata

Manufacturer Part:LQP03TN15NJ02D

Email Document
ECAD Model:

In Stock

57,659 In stock, ready to ship

Quantity

100

Unit Price (USD)

$0.0095

Ext. Price (USD)

$0.95

Total price$0.95
MOQ100Mult100SPQ1,000DC2615+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.0095
$0.47
500
$0.0075
$3.75
1,500
$0.0064
$9.60
15,000
$0.0057
$85.50
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
2.6GHz
Inductance
15 nH
Inductance Frequency-Test
500 MHz
Q @ Freq
12 @ 500MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
250 mA
DC Resistance (DCR)
700mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.013" (0.33mm)
Package/Case
0201 (0603 Metric)
Size / Dimension
0.024" L x 0.012" W (0.60mm x 0.30mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQP03TN
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
2357697
Series
LQP03
Supplier Device Package
0201 (0603 Metric)
Tolerance
±5%
