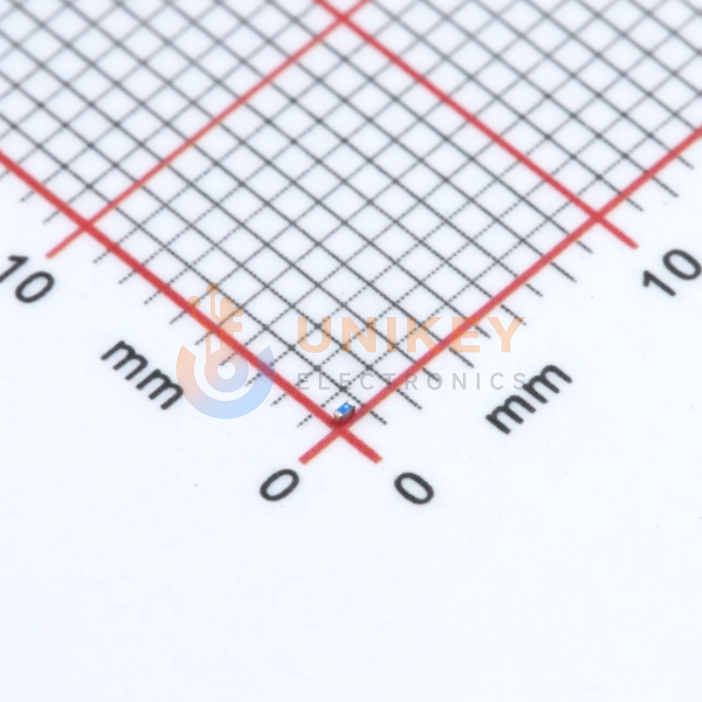

Murata LQP03TN12NH02D image
Images are for reference only

LQP03TN12NH02D

500MHz 2.9GHz 850mA 250mA 12@500MHz 12nH 700mΩ ±3% 0201 SMD mount 600μm*300μm*330μm

Other Names:LQP03TN12NH02D

Manufacturer:Murata

Manufacturer Part:LQP03TN12NH02D

Email Document
ECAD Model:

In Stock

31,717 In stock, ready to ship

Quantity

100

Unit Price (USD)

$0.0097

Ext. Price (USD)

$0.97

Total price$0.97
MOQ100Mult100SPQ15,000DC2515+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.0097
$0.48
500
$0.0079
$3.95
1,500
$0.0069
$10.35
15,000
$0.0049
$73.50
30,000
$0.0044
$132.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
2.9GHz
Inductance
12 nH
Inductance Frequency-Test
500 MHz
Q @ Freq
12 @ 500MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
250 mA
DC Resistance (DCR)
700mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.013" (0.33mm)
Package/Case
0201 (0603 Metric)
Size / Dimension
0.024" L x 0.012" W (0.60mm x 0.30mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQP03TN
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
2391757
Series
LQP03
Supplier Device Package
0201 (0603 Metric)
Tolerance
±3%

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

For frequency-related selection, Murata Manufacturing LQP03TN12NH02D is specified with inductance measured at 500 MHz, Q min 12, and a self resonant frequency of 2900 MHz min with 4300 MHz typical. The available rating data focuses on inductance, Q, DC resistance, SRF, and rated current rather than providing a separate impedance value. Engineers should compare these parameters against the circuit’s operating frequency and required RF behavior.
