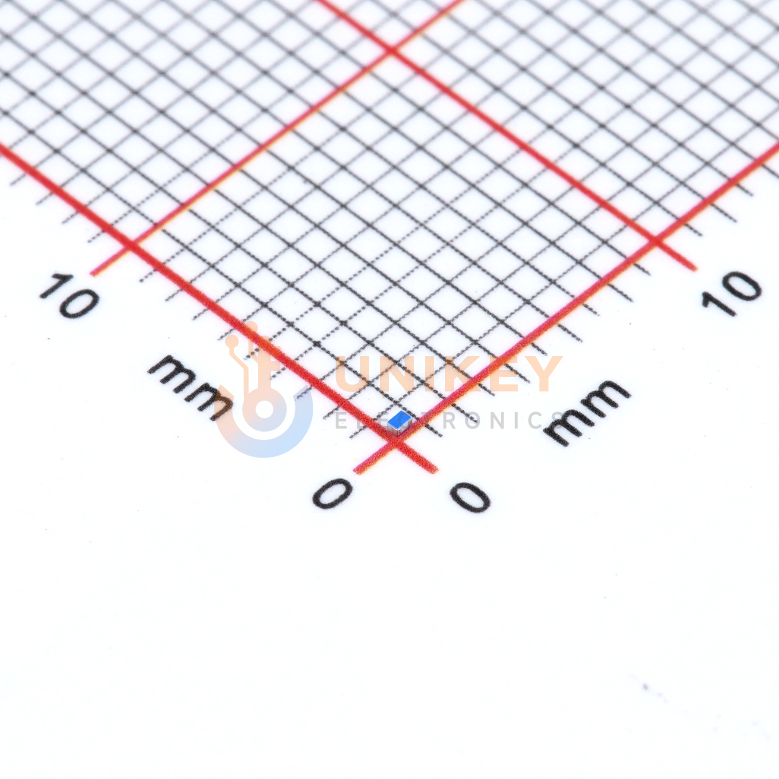

Murata LQP03HQ1N8B02D image
Murata LQP03HQ1N8B02D image
Images are for reference only

LQP03HQ1N8B02D

Ferrite Bead, SMD 0201, 500MHz-10GHz, 800mA, 20Ω@500MHz, 1.8nH ±0.1nH, 80mΩ, 600μm × 300μm × 420μm

Other Names:LQP03HQ1N8B02D

Manufacturer:Murata

Manufacturer Part:LQP03HQ1N8B02D

Email Document
ECAD Model:

In Stock

331,864 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0155

Ext. Price (USD)

$0.07

Total price$0.07
MOQ5Mult5SPQ15,000DC2503+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0155
$0.01
15,000
$0.0123
$184.50
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
10GHz
Inductance
1.8 nH
Inductance Frequency-Test
500 MHz
Q @ Freq
20 @ 500MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
800 mA
DC Resistance (DCR)
80mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.017" (0.42mm)
Package/Case
0201 (0603 Metric)
Size / Dimension
0.024" L x 0.012" W (0.60mm x 0.30mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQP03HQ
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
6098837
Series
LQP03
Supplier Device Package
0201 (0603 Metric)
Tolerance
±0.1nH
