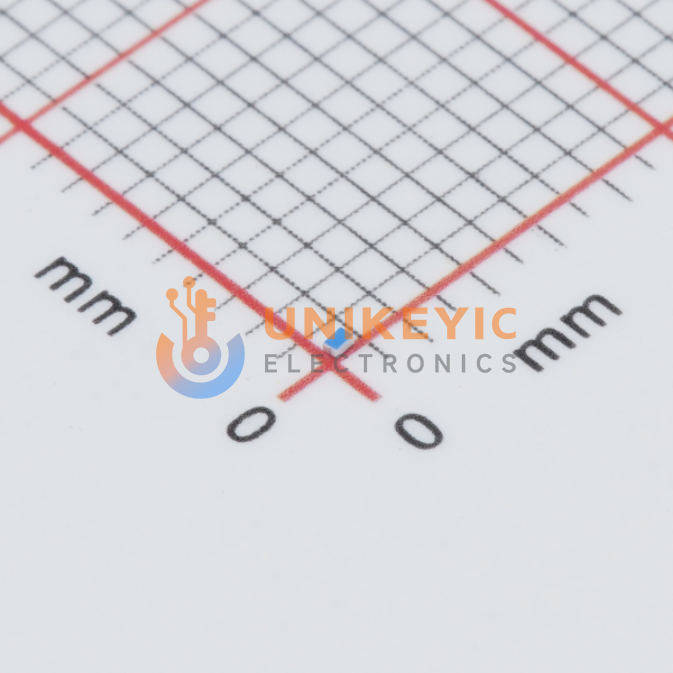

Murata LQP03HQ15NH02D image
Images are for reference only

LQP03HQ15NH02D

500MHz 3.5GHz 300mA 20@500MHz 15nH 700mΩ ±3% 0201 SMD mount 600μm*300μm*420μm

Other Names:LQP03HQ15NH02D

Manufacturer:Murata

Manufacturer Part:LQP03HQ15NH02D

Email Document
ECAD Model:

In Stock

18,957 In stock, ready to ship

Quantity

20

Unit Price (USD)

$0.0375

Ext. Price (USD)

$0.75

Total price$0.75
MOQ20Mult5SPQ15,000DC2610+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
20
$0.0375
$0.75
200
$0.0295
$5.90
600
$0.0252
$15.12
2,000
$0.0226
$45.20
15,000
$0.0204
$306.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
3.5GHz
Inductance
15 nH
Inductance Frequency-Test
500 MHz
Q @ Freq
20 @ 500MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
300 mA
DC Resistance (DCR)
700mOhm Max
Material - Core
Non-Magnetic
Height-Seated (Max)
0.017" (0.42mm)
Package/Case
0201 (0603 Metric)
Size / Dimension
0.024" L x 0.012" W (0.60mm x 0.30mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQP03HQ
Features
-
Mounting Type
Surface Mount
Ratings
-
Rid
6098962
Series
LQP03
Supplier Device Package
0201 (0603 Metric)
Tolerance
±3%
