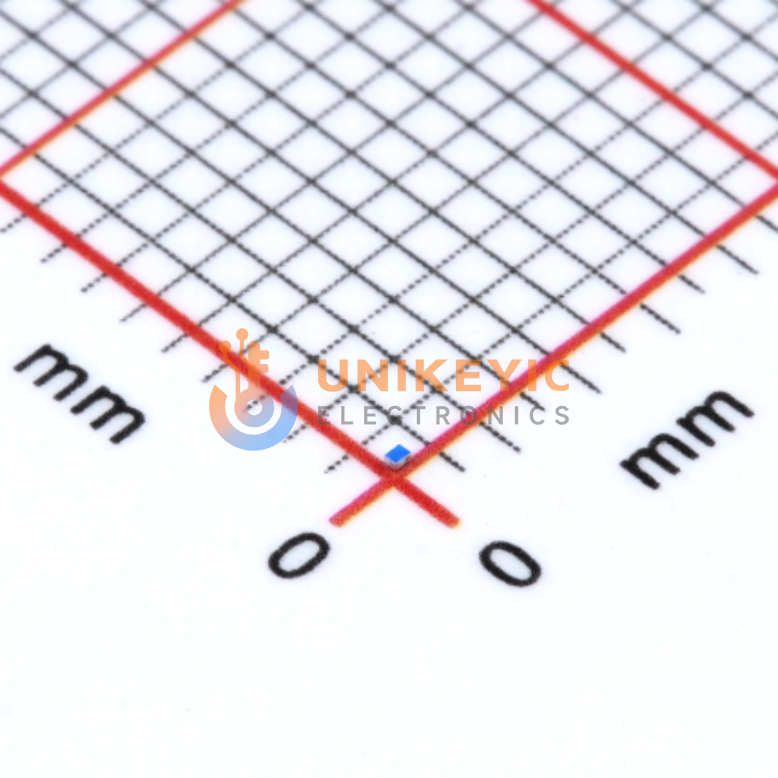

Murata LQP02HQ6N2H02L image
Images are for reference only

LQP02HQ6N2H02L

Ferrite Bead, 500MHz-6GHz, 300mA, 13Ω@500MHz, 6.2nH, 400mΩ ±3%, 01005 SMD, 400μm × 200μm × 320μm

Other Names:LQP02HQ6N2H02L

Manufacturer:Murata

Manufacturer Part:LQP02HQ6N2H02L

Email Document
ECAD Model:

In Stock

2,851 In stock, ready to ship

Quantity

10

Unit Price (USD)

$0.0128

Ext. Price (USD)

$0.12

Total price$0.12
MOQ10Mult1SPQ30,000DC2113+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
10
$0.0128
$0.12
100
$0.012
$1.20
300
$0.0113
$3.39
1,000
$0.0105
$10.50
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
6GHz
Inductance
6.2 nH
Inductance Frequency-Test
500 MHz
Q @ Freq
13 @ 500MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
300 mA
DC Resistance (DCR)
400mOhm Max
Material - Core
-
Packaging
Tape & Reel (TR)
Height-Seated (Max)
0.013" (0.32mm)
Package/Case
01005 (0402 Metric)
Size / Dimension
0.016" L x 0.008" W (0.40mm x 0.20mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQP02HQ
Features
-
Mounting Type
Surface Mount
Ratings
-
Series
LQP02
Supplier Device Package
01005 (0402 Metric)
Tolerance
±3%
