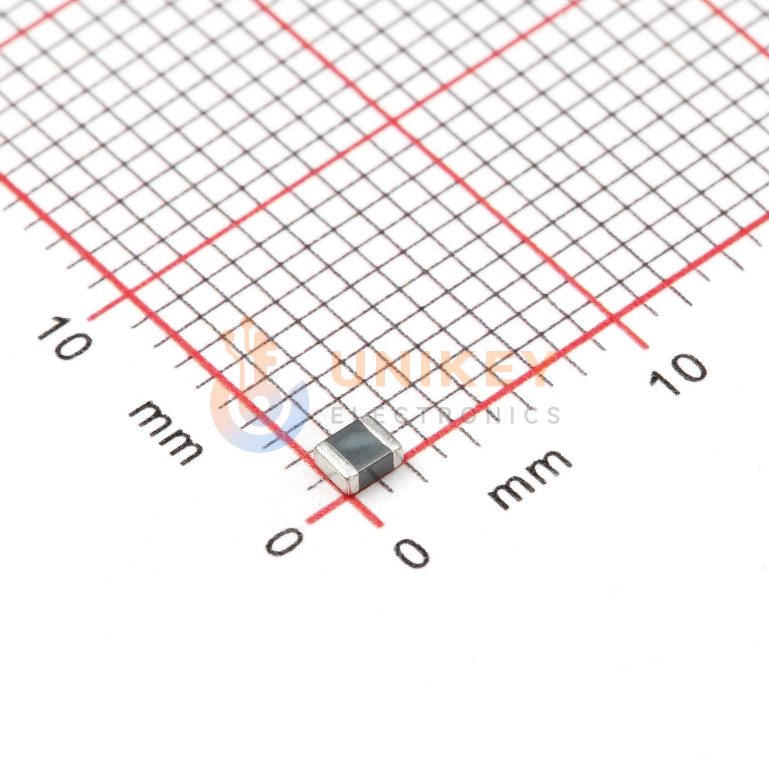

Murata LQM2MPN4R7MG0L image
Images are for reference only

LQM2MPN4R7MG0L

1MHz-20MHz 1.1A 4.7μH 175mΩ ±20% 0806 SMD 2mm × 1.6mm × 1mm

Other Names:LQM2MPN4R7MG0L

Manufacturer:Murata

Manufacturer Part:LQM2MPN4R7MG0L

Email Document
ECAD Model:

In Stock

22,302 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.108

Ext. Price (USD)

$0.54

Total price$0.54
MOQ5Mult5SPQ3,000DC2536+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.108
$0.54
50
$0.0879
$4.39
150
$0.078
$11.70
500
$0.0707
$35.35
3,000
$0.0567
$170.10
6,000
$0.0538
$322.80
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
20MHz
Inductance
4.7 µH
Inductance Frequency-Test
1 MHz
Q @ Freq
-
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
1.1 A
DC Resistance (DCR)
175mOhm Max
Material - Core
Ferrite
Height-Seated (Max)
0.039" (1.00mm)
Package/Case
0806 (2016 Metric)
Size / Dimension
0.079" L x 0.063" W (2.00mm x 1.60mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Base Product Number
LQM2MPN
Mounting Type
Surface Mount
Ratings
-
Rid
5403074
Series
LQM2
Supplier Device Package
0805 (2012 Metric)
Tolerance
±20%
