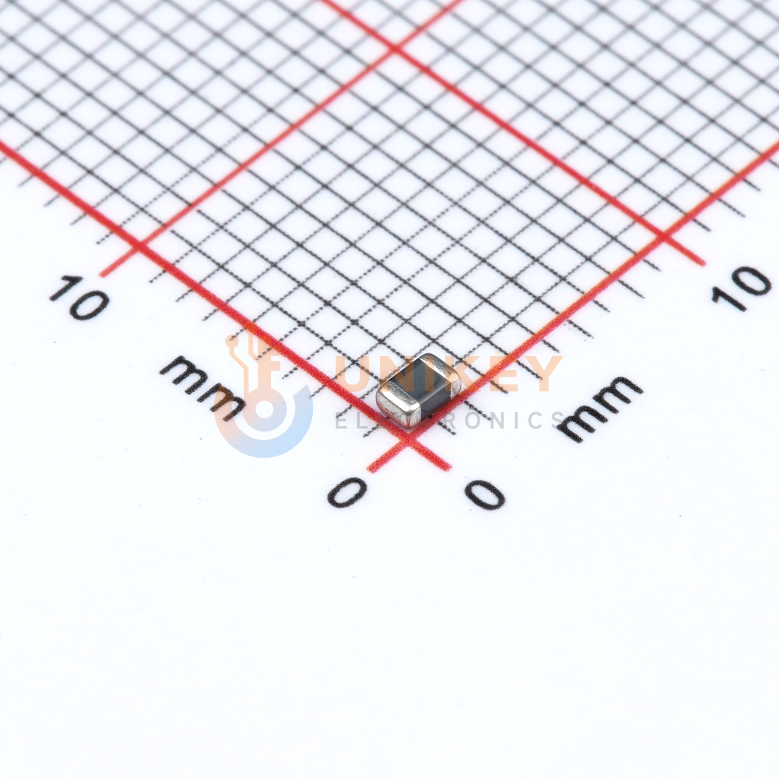

Murata LQM21PN4R7MGHL image
Images are for reference only

LQM21PN4R7MGHL

1MHz-20MHz 250mA 1.2A 4.7μH 275mΩ ±20% 0805 SMD, 2mm × 1.25mm × 1mm

Other Names:LQM21PN4R7MGHL

Manufacturer:Murata

Manufacturer Part:LQM21PN4R7MGHL

Email Document
ECAD Model:

In Stock

9,772 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.1241

Ext. Price (USD)

$0.62

Total price$0.62
MOQ5Mult5SPQ3,000DC2606+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1241
$0.62
50
$0.0994
$4.97
150
$0.0866
$12.99
500
$0.0773
$38.65
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
20MHz
Inductance
4.7 µH
Inductance Frequency-Test
1 MHz
Q @ Freq
-
Current - Saturation (Isat)
250mA
Operating Temperature
-40°C ~ 85°C
Current Rating (Amps)
1.2 A
DC Resistance (DCR)
275mOhm Max
Material - Core
Ferrite
Height-Seated (Max)
0.039" (1.00mm)
Package/Case
0805 (2012 Metric)
Size / Dimension
0.079" L x 0.049" W (2.00mm x 1.25mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Base Product Number
LQM21PN
Features
-
Mounting Type
Surface Mount
Ratings
AEC-Q200
Rid
7595557
Series
LQM21
Supplier Device Package
0805 (2012 Metric)
Tolerance
±20%

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

For Murata Manufacturing LQM21PN4R7MGHL, application selection should be based on its chip inductor function, 4.7 µH inductance, current ratings, DC resistance, self-resonant frequency, solder-mount construction, and operating temperature range. The manufacturer documentation also calls out special review for high-reliability uses such as aircraft, aerospace, medical, transportation, traffic signal, disaster-prevention, and similar equipment. Engineers should confirm the circuit requirements against these ratings before use.
