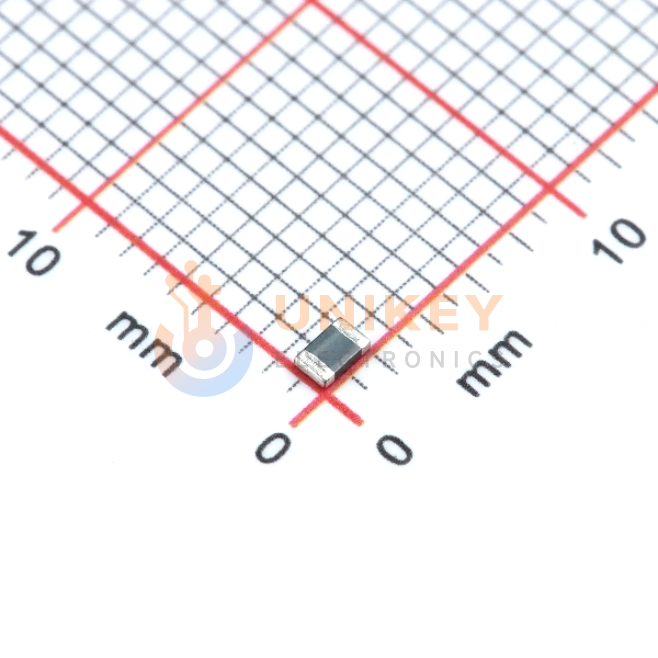

Murata LQM21PN1R0MC0D image
Images are for reference only

LQM21PN1R0MC0D

1MHz 90MHz 800mA 12 1μH 238mΩ ±20% 0805 SMD mount 2mm*1.25mm*550μm

Other Names:LQM21PN1R0MC0D

more
LQM21PN1R0MC0D

Manufacturer:Murata

Manufacturer Part:LQM21PN1R0MC0D

Email Document
ECAD Model:

In Stock

8,334 In stock, ready to ship

Quantity

10

Unit Price (USD)

$0.0825

Ext. Price (USD)

$0.82

Total price$0.82
MOQ10Mult10SPQ4,000DC2638+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0825
$0.08
4,000
$0.0771
$308.40
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
90MHz
Inductance
1 µH
Inductance Frequency-Test
1 MHz
Q @ Freq
-
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
800 mA
DC Resistance (DCR)
238mOhm Max
Material - Core
Ferrite
Height-Seated (Max)
0.022" (0.55mm)
Package/Case
0805 (2012 Metric)
Size / Dimension
0.079" L x 0.049" W (2.00mm x 1.25mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Base Product Number
LQM21PN
Mounting Type
Surface Mount
Ratings
-
Rid
1788290
Series
LQM21
Supplier Device Package
0805 (2012 Metric)
Tolerance
±20%
