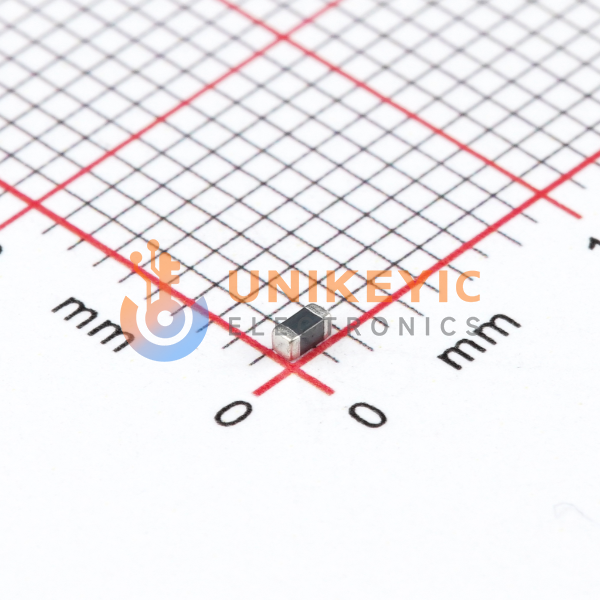

Murata LQM18PN4R7MFRL image
Images are for reference only

LQM18PN4R7MFRL

1MHz 40MHz 620mA 12 4.7μH 550mΩ ±20% 0603 SMD mount 1.6mm*800μm*950μm

Other Names:LQM18PN4R7MFRL

Manufacturer:Murata

Manufacturer Part:LQM18PN4R7MFRL

Email Document
ECAD Model:

In Stock

64,362 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.0393

Ext. Price (USD)

$0.03

Total price$0.03
MOQ1Mult1SPQ4,000DC2607+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0393
$0.03
4,000
$0.0348
$139.20
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
40MHz
Inductance
4.7 µH
Inductance Frequency-Test
1 MHz
Q @ Freq
-
Current - Saturation (Isat)
-
Operating Temperature
-40°C ~ 85°C
Current Rating (Amps)
620 mA
DC Resistance (DCR)
550mOhm Max
Material - Core
Ferrite
Height-Seated (Max)
0.037" (0.95mm)
Package/Case
0603 (1608 Metric)
Size / Dimension
0.063" L x 0.031" W (1.60mm x 0.80mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Base Product Number
LQM18PN
Mounting Type
Surface Mount
Ratings
-
Rid
5403273
Series
LQM18
Supplier Device Package
0603 (1608 Metric)
Tolerance
±20%
