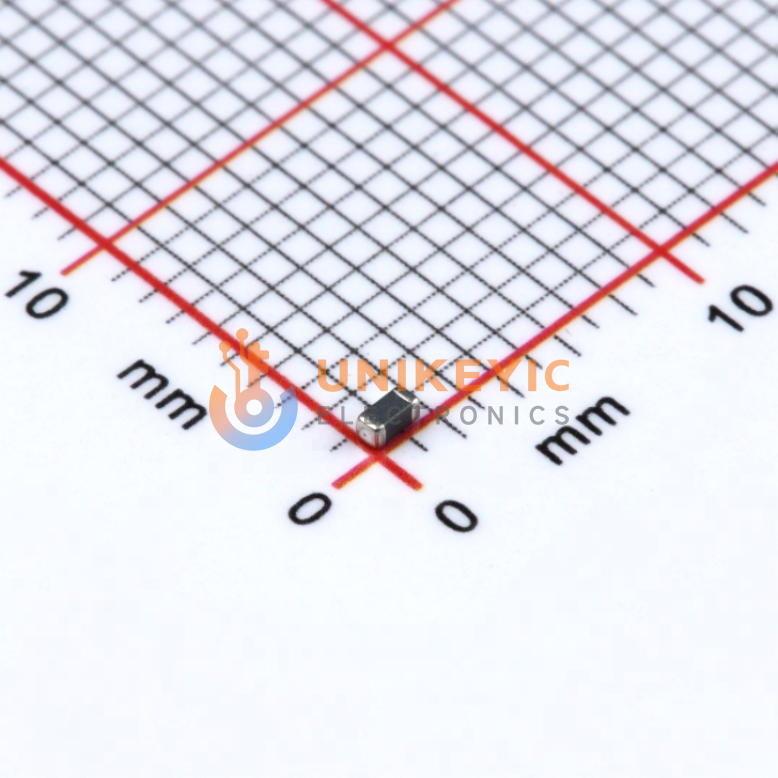

Murata LQM18NN1R8K00D image
Images are for reference only

LQM18NN1R8K00D

10MHz 55MHz 25mA 35@10MHz 1.8μH 950mΩ ±10% 0603 SMD mount 1.6mm*800μm*950μm

Other Names:LQM18NN1R8K00D

Manufacturer:Murata

Manufacturer Part:LQM18NN1R8K00D

Email Document
ECAD Model:

In Stock

1,704 In stock, ready to ship

Quantity

10

Unit Price (USD)

$0.03

Ext. Price (USD)

$0.30

Total price$0.30
MOQ10Mult1SPQ4,000DC2108+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.03
$0.15
50
$0.027
$1.35
150
$0.0255
$3.82
500
$0.024
$12.00
1,000
$0.0225
$22.50
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
55MHz
Inductance
1.8 µH
Inductance Frequency-Test
10 MHz
Q @ Freq
35 @ 10MHz
Current - Saturation (Isat)
-
Operating Temperature
-40°C ~ 85°C
Current Rating (Amps)
25 mA
DC Resistance (DCR)
950mOhm Max
Material - Core
Ferrite
Height-Seated (Max)
0.037" (0.95mm)
Package/Case
0603 (1608 Metric)
Size / Dimension
0.063" L x 0.031" W (1.60mm x 0.80mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Base Product Number
LQM18NN
Mounting Type
Surface Mount
Ratings
-
Rid
3845872
Series
LQM18
Supplier Device Package
0603 (1608 Metric)
Tolerance
±10%
