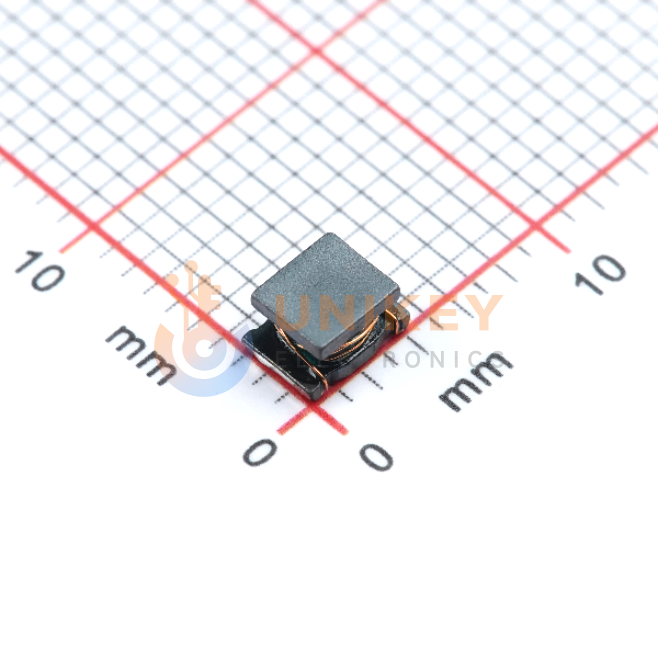

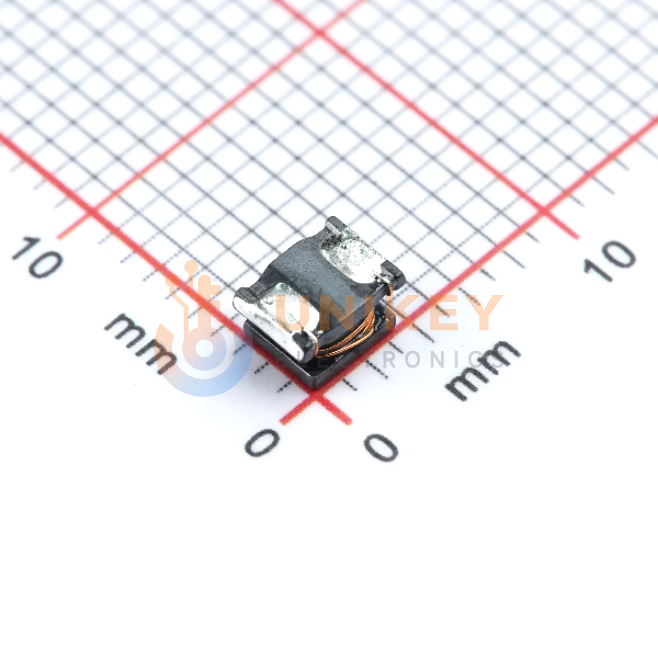

Murata LQH43CN470K03L image
Images are for reference only

LQH43CN470K03L

1MHz-10MHz 280mA 47μH 1.1Ω ±10% 1812 SMD 4.5mm × 3.2mm × 2.8mm

Other Names:LQH43CN470K03L

more
LQH43CN470K03L

Manufacturer:Murata

Manufacturer Part:LQH43CN470K03L

Email Document
ECAD Model:

In Stock

7,924 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.3992

Ext. Price (USD)

$0.39

Total price$0.39
MOQ1Mult1SPQ500DC2450+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.3992
$0.39
10
$0.3168
$3.16
50
$0.2626
$13.13
150
$0.244
$36.60
500
$0.2279
$113.95
1,000
$0.2138
$213.80
2,000
$0.2025
$405.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
10MHz
Inductance
47 µH
Inductance Frequency-Test
1 MHz
Q @ Freq
-
Current - Saturation (Isat)
-
Operating Temperature
-40°C ~ 85°C
Current Rating (Amps)
280 mA
DC Resistance (DCR)
1.1Ohm Max
Material - Core
Ferrite
Height-Seated (Max)
0.110" (2.80mm)
Package/Case
1812 (4532 Metric)
Size / Dimension
0.177" L x 0.126" W (4.50mm x 3.20mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQH43CN
Mounting Type
Surface Mount
Ratings
-
Rid
599913
Series
LQH43
Supplier Device Package
1812
Tolerance
±10%
