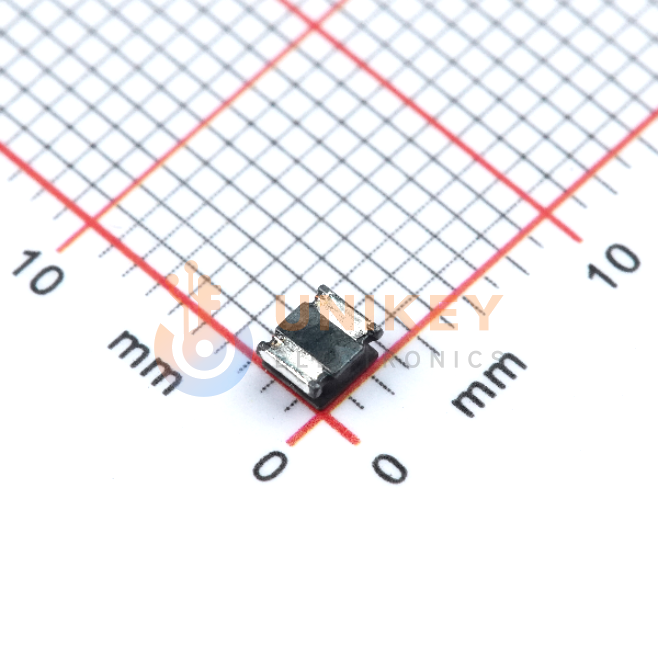

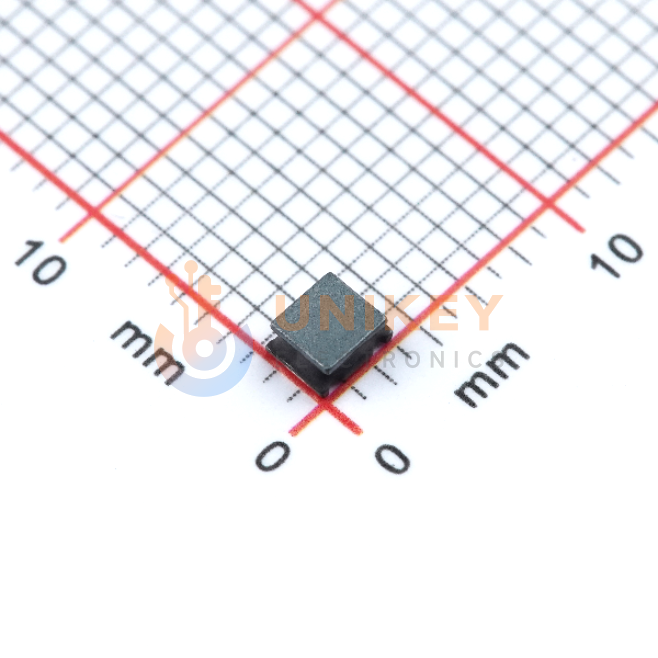

Murata LQH32PN220MN0L image
Images are for reference only

LQH32PN220MN0L

1MHz 20MHz 500mA 450mA 22μH 972mΩ ±20% SMD SMD mount 3.2mm*2.5mm*1.7mm

Other Names:LQH32PN220MN0L

Manufacturer:Murata

Manufacturer Part:LQH32PN220MN0L

Email Document
ECAD Model:

In Stock

15,845 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.1009

Ext. Price (USD)

$0.50

Total price$0.50
MOQ5Mult5SPQ2,000DC2616+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1009
$0.50
50
$0.0914
$4.57
150
$0.0828
$12.42
500
$0.0753
$37.65
1,000
$0.0709
$70.90
2,000
$0.0686
$137.20
4,000
$0.0663
$265.20
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
20MHz
Inductance
22 µH
Inductance Frequency-Test
1 MHz
Q @ Freq
-
Current - Saturation (Isat)
500mA
Operating Temperature
-40°C ~ 85°C
Current Rating (Amps)
450 mA
DC Resistance (DCR)
972mOhm Max
Material - Core
Ferrite
Height-Seated (Max)
0.067" (1.70mm)
Package/Case
Nonstandard
Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Shielded
Base Product Number
LQH32PN
Mounting Type
Surface Mount
Ratings
-
Rid
2092205
Series
LQH32
Supplier Device Package
1210 (3225 Metric)
Tolerance
±20%
