LQG15HSR27J02D

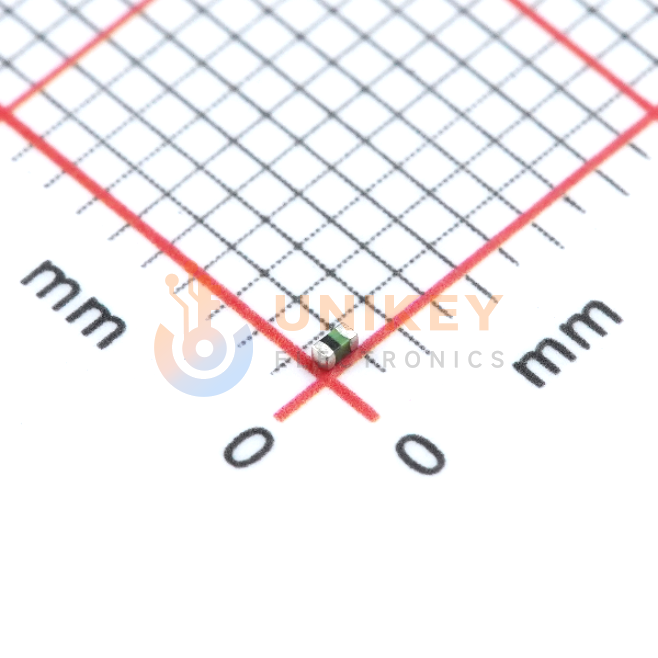

Ferrite Bead 100MHz-400MHz 110mA 8Ω@100MHz 270nH 4.94Ω ±5% 0402 SMD 1mm × 500μm × 550μm
Other Names:LQG15HSR27J02D
Manufacturer:Murata
Manufacturer Part:LQG15HSR27J02D
Datasheet:Murata LQG15HSR27J02D Datasheet (PDF)
Email Document
In Stock
19,956 In stock, ready to ship
Quantity
5
Unit Price (USD)
$0.0128
Ext. Price (USD)
$0.06
Total price$0.06
MOQ5Mult5SPQ10,000DC2627+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0128
$0.01
10,000
$0.0105
$105.00
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Frequency - Self Resonant | 400MHz |
| Inductance | 270 nH |
| Inductance Frequency-Test | 100 MHz |
| Q @ Freq | 8 @ 100MHz |
| Current - Saturation (Isat) | - |
| Operating Temperature | -55°C ~ 125°C |
| Current Rating (Amps) | 110 mA |
| DC Resistance (DCR) | 4.94Ohm Max |
| Material - Core | Air |
| Height-Seated (Max) | 0.022" (0.55mm) |
| Package/Case | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Shielding | Unshielded |
| Base Product Number | LQG15HS |
| Mounting Type | Surface Mount |
| Ratings | - |
| Rid | 1826318 |
| Series | LQG15 |
| Supplier Device Package | 0402 (1005 Metric) |
| Tolerance | ±5% |
Frequently Asked Questions (FAQs)
For Murata LQG15HSR27J02D PCB layout, use the manufacturer’s land pattern dimensions: a = 0.4 mm, b = 1.4 to 1.5 mm, and c = 0.5 to 0.6 mm. The datasheet specifies solder mounting by reflow, rosin-based flux, Sn-3.0Ag-0.5Cu solder, and 100 μm to 150 μm solder paste thickness. It also advises placing products to reduce mechanical stress from board warping, separation, and screw-hole deflection.
