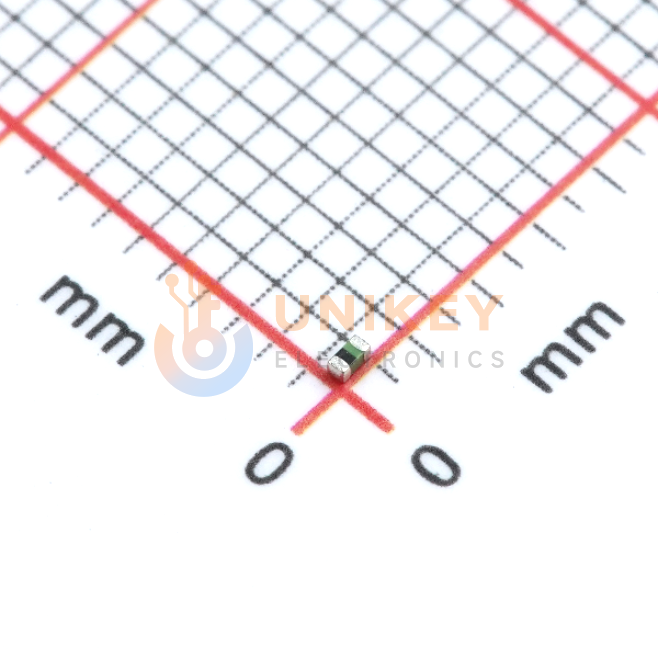

Murata LQG15HSR18J02D image
Images are for reference only

LQG15HSR18J02D

100MHz-500MHz 150mA 8Ω@100MHz 180nH 3.38Ω ±5% 0402 Inductor, SMD, 1mm × 500μm × 550μm

Other Names:LQG15HSR18J02D

Manufacturer:Murata

Manufacturer Part:LQG15HSR18J02D

Email Document
ECAD Model:

In Stock

38,294 In stock, ready to ship

Quantity

50

Unit Price (USD)

$0.0295

Ext. Price (USD)

$1.47

Total price$1.47
MOQ50Mult50SPQ10,000DC2549+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
20
$0.0295
$0.59
200
$0.025
$5.00
600
$0.0224
$13.44
2,000
$0.0209
$41.80
10,000
$0.0192
$192.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
500MHz
Inductance
180 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
8 @ 100MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
150 mA
DC Resistance (DCR)
3.38Ohm Max
Material - Core
Air
Height-Seated (Max)
0.022" (0.55mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQG15HS
Mounting Type
Surface Mount
Ratings
-
Series
LQG15
Supplier Device Package
0402 (1005 Metric)
Tolerance
±5%
