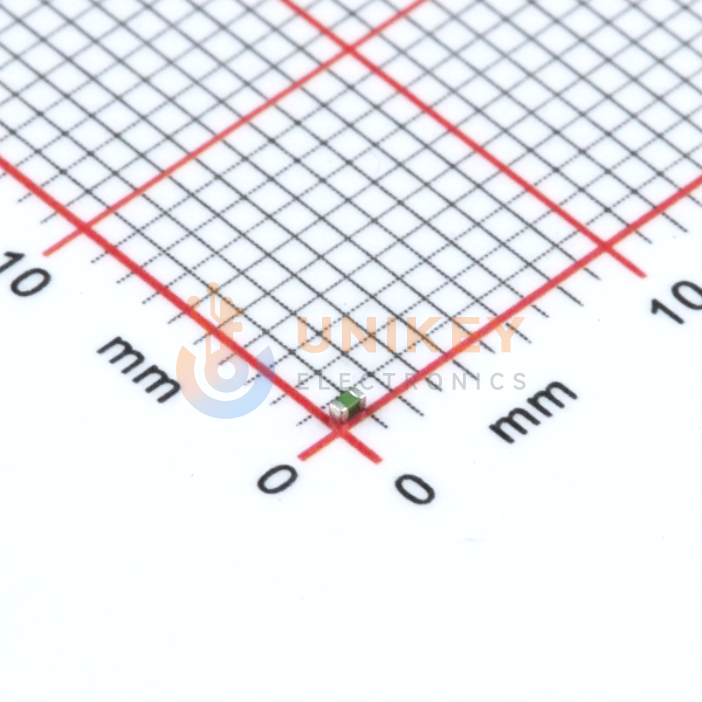

Murata LQG15HSR10J02D image
Images are for reference only

LQG15HSR10J02D

100MHz 600MHz 1A 200mA 8@100MHz 100nH 1.25Ω ±5% 0402 SMD mount 1mm*500μm*550μm

Other Names:LQG15HSR10J02D

more
LQG15HSR10J02D

Manufacturer:Murata

Manufacturer Part:LQG15HSR10J02D

Email Document
ECAD Model:

In Stock

102,153 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0098

Ext. Price (USD)

$0.04

Total price$0.04
MOQ5Mult5SPQ10,000DC2532+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0098
$0.00
10,000
$0.008
$80.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
600MHz
Inductance
100 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
8 @ 100MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
200 mA
DC Resistance (DCR)
1.25Ohm Max
Material - Core
Air
Height-Seated (Max)
0.022" (0.55mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQG15HS
Mounting Type
Surface Mount
Ratings
-
Rid
662915
Series
LQG15
Supplier Device Package
0402 (1005 Metric)
Tolerance
±5%
