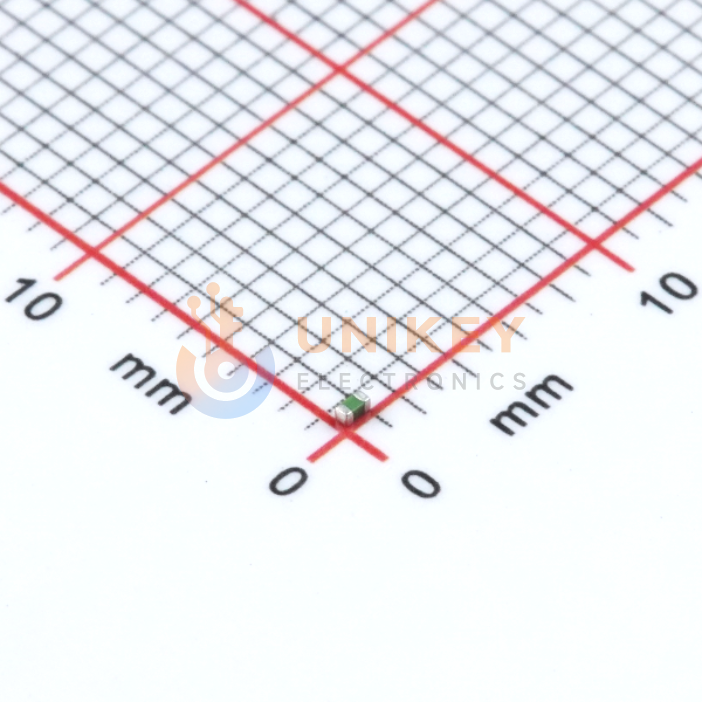

Images are for reference only
LQG15HS9N1J02D
100MHz 3.4GHz 500mA 8@100MHz 9.1nH 260mΩ ±5% 0402 SMD mount 1mm*500μm*550μm
Other Names:LQG15HS9N1J02D
Manufacturer:Murata
Manufacturer Part:LQG15HS9N1J02D
Datasheet:Murata LQG15HS9N1J02D Datasheet (PDF)
Email Document
In Stock
92,135 In stock, ready to ship
Quantity
100
Unit Price (USD)
$0.011
Ext. Price (USD)
$1.10
Total price$1.10
MOQ100Mult100SPQ10,000DC2609+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.011
$0.01
10,000
$0.009
$90.00
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Manufacturer | |
| Frequency - Self Resonant | 3.4GHz |
| Inductance | 9.1 nH |
| Inductance Frequency-Test | 100 MHz |
| Q @ Freq | 8 @ 100MHz |
| Current - Saturation (Isat) | - |
| Operating Temperature | -55°C ~ 125°C |
| Current Rating (Amps) | 500 mA |
| DC Resistance (DCR) | 260mOhm Max |
| Material - Core | Air |
| Height-Seated (Max) | 0.022" (0.55mm) |
| Package/Case | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Shielding | Unshielded |
| Base Product Number | LQG15HS |
| Mounting Type | Surface Mount |
| Ratings | - |
| Rid | 2594223 |
| Series | LQG15 |
| Supplier Device Package | 0402 (1005 Metric) |
| Tolerance | ±5% |
