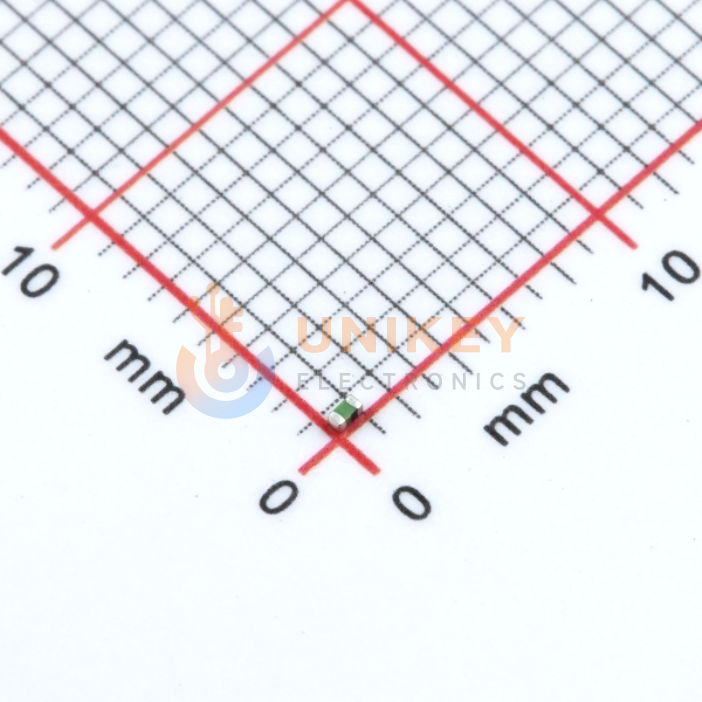

Murata LQG15HS6N2S02D image
Images are for reference only

LQG15HS6N2S02D

100MHz 4.5GHz 1A 600mA 8@100MHz 6.2nH 220mΩ ±0.3nH 0402 SMD mount 1mm*500μm*550μm

Other Names:LQG15HS6N2S02D

more
LQG15HS6N2S02D

Manufacturer:Murata

Manufacturer Part:LQG15HS6N2S02D

Email Document
ECAD Model:

In Stock

35,448 In stock, ready to ship

Quantity

100

Unit Price (USD)

$0.0095

Ext. Price (USD)

$0.95

Total price$0.95
MOQ100Mult100SPQ1,000DC2605+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0095
$0.00
10,000
$0.0078
$78.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
4.5GHz
Inductance
6.2 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
8 @ 100MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
600 mA
DC Resistance (DCR)
220mOhm Max
Material - Core
Air
Height-Seated (Max)
0.022" (0.55mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQG15HS
Mounting Type
Surface Mount
Ratings
-
Rid
662900
Series
LQG15
Supplier Device Package
0402 (1005 Metric)
Tolerance
±0.3nH
