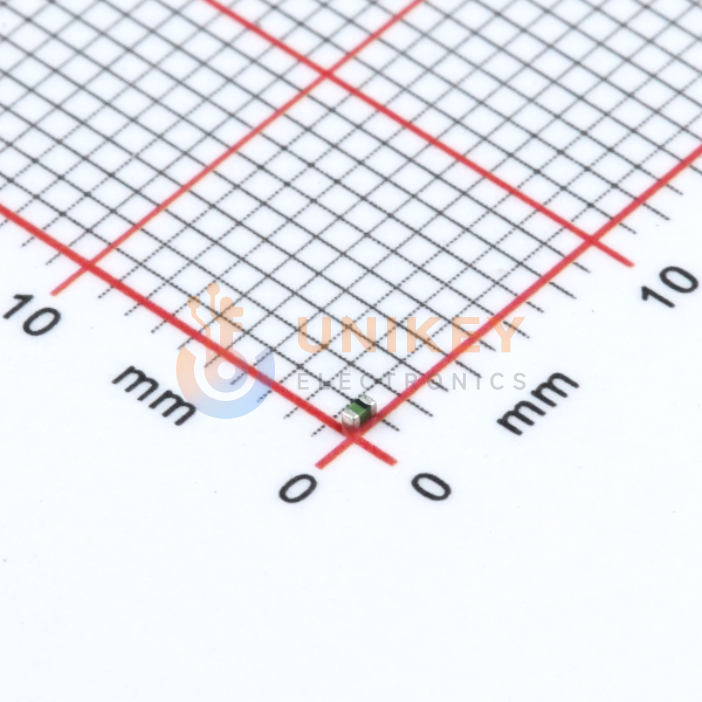

Murata LQG15HS5N6S02D image
Images are for reference only

LQG15HS5N6S02D

100MHz 4.5GHz 1A 650mA 8@100MHz 5.6nH 200mΩ ±0.3nH 0402 SMD mount 1mm*500μm*550μm

Other Names:LQG15HS5N6S02D

Manufacturer:Murata

Manufacturer Part:LQG15HS5N6S02D

Email Document
ECAD Model:

In Stock

80,684 In stock, ready to ship

Quantity

100

Unit Price (USD)

$0.0224

Ext. Price (USD)

$2.24

Total price$2.24
MOQ100Mult100SPQ10,000DC2601+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
100
$0.0224
$2.24
1,000
$0.0186
$18.60
5,000
$0.0159
$79.50
10,000
$0.0147
$147.00
30,000
$0.0139
$417.00
50,000
$0.0131
$655.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
4.5GHz
Inductance
5.6 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
8 @ 100MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
650 mA
DC Resistance (DCR)
200mOhm Max
Material - Core
Air
Height-Seated (Max)
0.022" (0.55mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQG15HS
Mounting Type
Surface Mount
Ratings
-
Rid
662868
Series
LQG15
Supplier Device Package
0402 (1005 Metric)
Tolerance
±0.3nH
