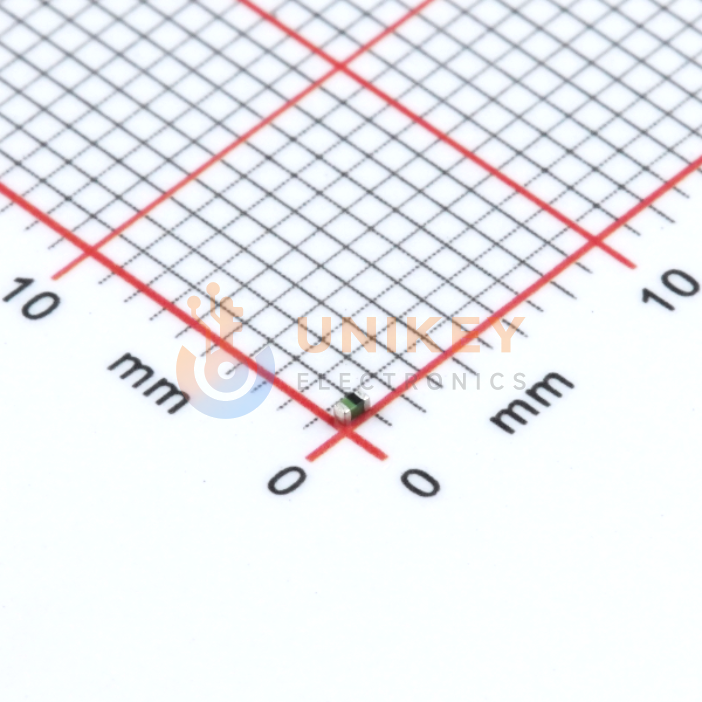

Murata LQG15HS3N0S02D image
Images are for reference only

LQG15HS3N0S02D

100MHz-6GHz 800mA 8Ω@100MHz 3nH±0.3nH 125mΩ 0402 SMD 1mm×500μm×550μm

Other Names:LQG15HS3N0S02D

Manufacturer:Murata

Manufacturer Part:LQG15HS3N0S02D

Email Document
ECAD Model:

In Stock

38,894 In stock, ready to ship

Quantity

100

Unit Price (USD)

$0.0111

Ext. Price (USD)

$1.11

Total price$1.11
MOQ100Mult100SPQ10,000DC2549+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0111
$0.01
10,000
$0.0091
$91.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
6GHz
Inductance
3 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
8 @ 100MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
800 mA
DC Resistance (DCR)
125mOhm Max
Material - Core
Air
Height-Seated (Max)
0.022" (0.55mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQG15HS
Mounting Type
Surface Mount
Ratings
-
Rid
3846783
Series
LQG15
Supplier Device Package
0402 (1005 Metric)
Tolerance
±0.3nH
