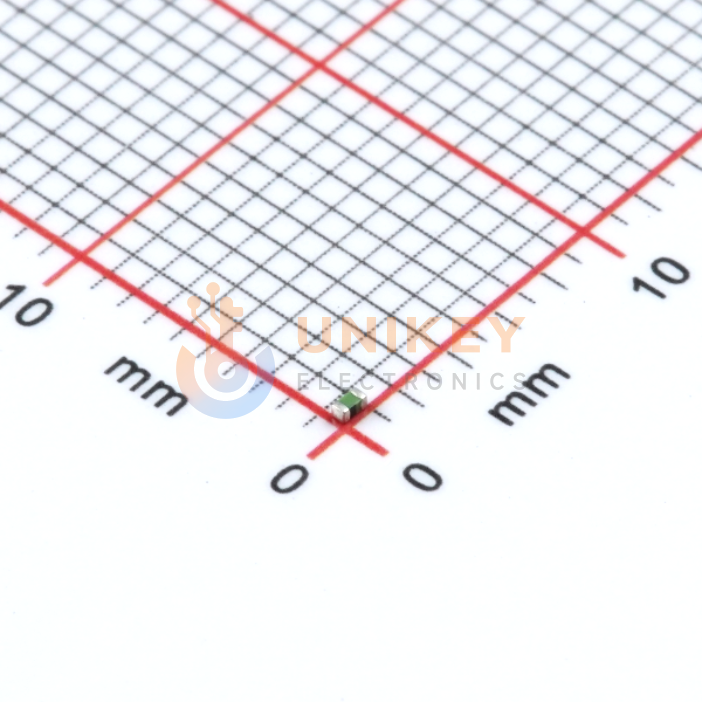

Images are for reference only
LQG15HS2N2S02D
100MHz 6GHz 1A 900mA 8@100MHz 2.2nH 120mΩ ±0.3nH 0402 SMD mount 1mm*500μm*550μm
Other Names:LQG15HS2N2S02D
Manufacturer:Murata
Manufacturer Part:LQG15HS2N2S02D
Datasheet:Murata LQG15HS2N2S02D Datasheet (PDF)
Email Document
In Stock
34,312 In stock, ready to ship
Quantity
100
Unit Price (USD)
$0.0192
Ext. Price (USD)
$1.92
Total price$1.92
MOQ100Mult100SPQ10,000DC2544+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.0192
$0.96
500
$0.0154
$7.70
1,500
$0.0133
$19.95
10,000
$0.0109
$109.00
20,000
$0.0098
$196.00
50,000
$0.0092
$460.00
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Frequency - Self Resonant | 6GHz |
| Inductance | 2.2 nH |
| Inductance Frequency-Test | 100 MHz |
| Q @ Freq | 8 @ 100MHz |
| Current - Saturation (Isat) | - |
| Operating Temperature | -55°C ~ 125°C |
| Current Rating (Amps) | 900 mA |
| DC Resistance (DCR) | 120mOhm Max |
| Material - Core | Air |
| Height-Seated (Max) | 0.022" (0.55mm) |
| Package/Case | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Shielding | Unshielded |
| Base Product Number | LQG15HS |
| Mounting Type | Surface Mount |
| Ratings | - |
| Series | LQG15 |
| Supplier Device Package | 0402 (1005 Metric) |
| Tolerance | ±0.3nH |
