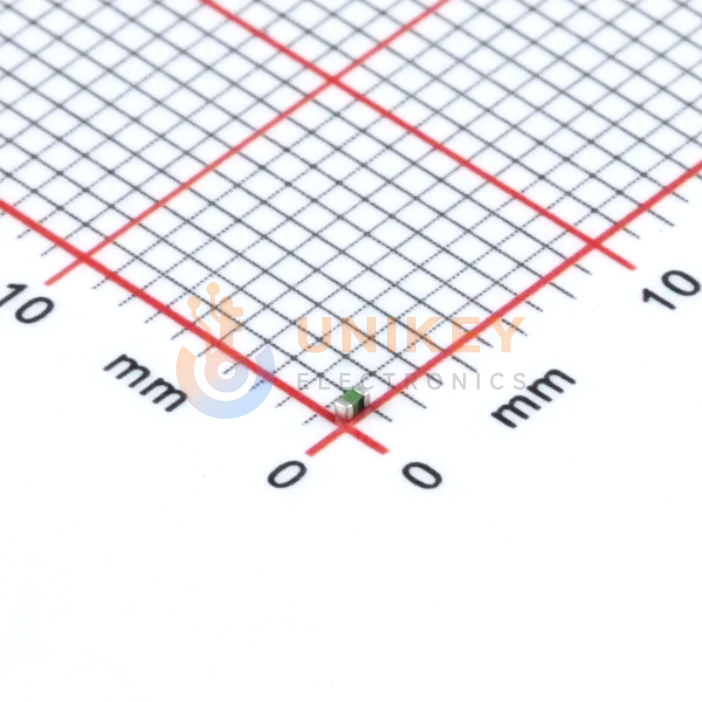

Murata LQG15HN4N7S02D image
Images are for reference only

LQG15HN4N7S02D

100MHz-6GHz, 700mA, 8Ω@100MHz, 4.7nH, 160mΩ, ±0.3nH, 0402, SMD, 1mm × 500μm × 550μm

Other Names:LQG15HN4N7S02D

Manufacturer:Murata

Manufacturer Part:LQG15HN4N7S02D

Email Document
ECAD Model:

In Stock

34,151 In stock, ready to ship

Quantity

100

Unit Price (USD)

$0.0168

Ext. Price (USD)

$1.68

Total price$1.68
MOQ100Mult100SPQ10,000DC2550+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.0168
$0.84
500
$0.0141
$7.05
1,500
$0.0127
$19.05
10,000
$0.0116
$116.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
6GHz
Inductance
4.7 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
8 @ 100MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
700 mA
DC Resistance (DCR)
160mOhm Max
Material - Core
Air
Height-Seated (Max)
0.022" (0.55mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQG15HN
Mounting Type
Surface Mount
Ratings
-
Rid
584289
Series
LQG15
Supplier Device Package
0402 (1005 Metric)
Tolerance
±0.3nH
