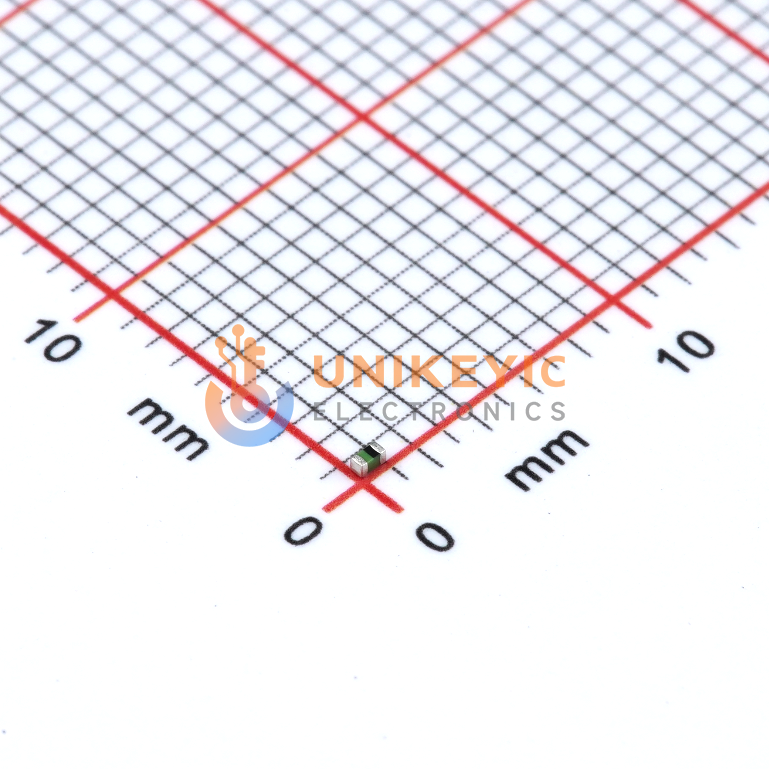

Murata LQG15HN2N2S02D image
Images are for reference only

LQG15HN2N2S02D

100MHz-6GHz 900mA 8Ω@100MHz 2.2nH ±0.3nH 90mΩ 0402 SMD 1mm × 500μm × 550μm Ferrite Bead

Other Names:LQG15HN2N2S02D

Manufacturer:Murata

Manufacturer Part:LQG15HN2N2S02D

Email Document
ECAD Model:

In Stock

14,962 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.1109

Ext. Price (USD)

$0.55

Total price$0.55
MOQ5Mult5SPQ10,000DC2627+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1109
$0.55
50
$0.0665
$3.32
150
$0.0475
$7.12
500
$0.0416
$20.80
1,500
$0.037
$55.50
4,000
$0.0333
$133.20
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
6GHz
Inductance
2.2 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
8 @ 100MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
900 mA
DC Resistance (DCR)
90mOhm Max
Material - Core
Air
Height-Seated (Max)
0.022" (0.55mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQG15HN
Mounting Type
Surface Mount
Ratings
-
Rid
4386681
Series
LQG15
Supplier Device Package
0402 (1005 Metric)
Tolerance
±0.3nH
