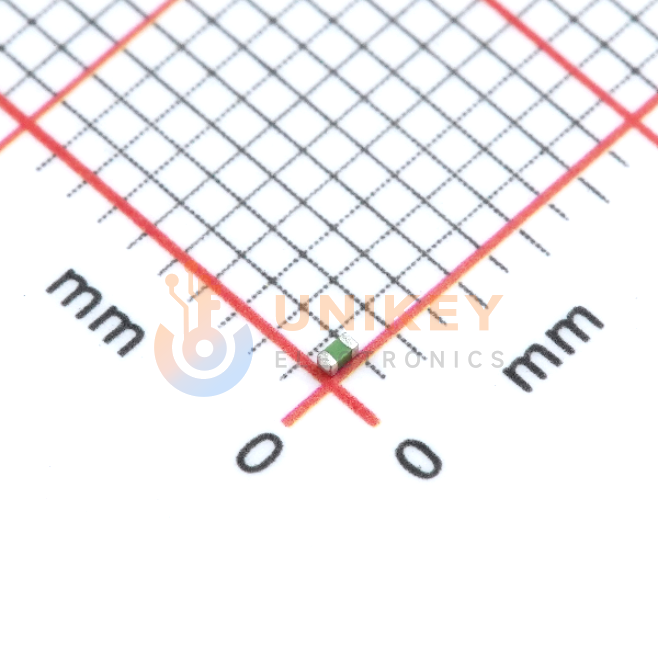

Murata LQG15HN1N0S02D image
Images are for reference only

LQG15HN1N0S02D

100MHz 6GHz 1A 8@100MHz 1nH 70mΩ ±0.3nH 0402 SMD mount 1mm*500μm*550μm

Other Names:LQG15HN1N0S02D

Manufacturer:Murata

Manufacturer Part:LQG15HN1N0S02D

Email Document
ECAD Model:

In Stock

20,000 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.0358

Ext. Price (USD)

$0.17

Total price$0.17
MOQ5Mult5SPQ10,000DC2549+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.0358
$0.17
50
$0.0255
$1.27
500
$0.0208
$10.40
5,000
$0.0176
$88.00
10,000
$0.0155
$155.00
50,000
$0.0152
$760.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Frequency - Self Resonant
6GHz
Inductance
1 nH
Inductance Frequency-Test
100 MHz
Q @ Freq
8 @ 100MHz
Current - Saturation (Isat)
-
Operating Temperature
-55°C ~ 125°C
Current Rating (Amps)
1 A
DC Resistance (DCR)
70mOhm Max
Material - Core
Air
Height-Seated (Max)
0.022" (0.55mm)
Package/Case
0402 (1005 Metric)
Size / Dimension
0.039" L x 0.020" W (1.00mm x 0.50mm)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Shielding
Unshielded
Base Product Number
LQG15HN
Mounting Type
Surface Mount
Ratings
-
Rid
584282
Series
LQG15
Supplier Device Package
0402 (1005 Metric)
Tolerance
±0.3nH
